Pressure line on 6-speed manual transmission 02M, securing

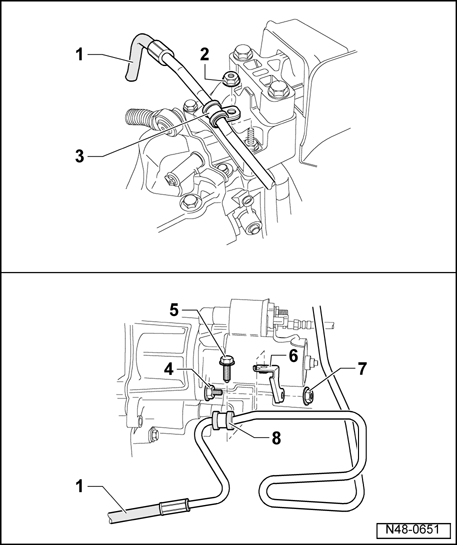

Fig 1: Securing Pressure Line On 6-Speed Manual Transmission 02M

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Pressure line

2 - Hex nut, 22 Nm

3 - Clamp

4 - Securing bolt on starter

5 - Hex head bolt, 22 Nm

6 - Bracket

7 - Hex nut, 22 Nm

8 - Clamp
