Trailing arm, removing and installing: Removing: Notes
WARNING: This page is about a different variant/trim than selected.
Vehicles with automatic headlight range control
- Remove coupling rod from Left Rear Level Control System Sensor G76 from rear axle → Left Rear Level Control System Sensor G76 on the rear axle for four wheel drive .
Continued for all vehicles
- Remove wheel.
- First remove the spring
Spring, removing and installing → Spring, removing and installing .
Removing and installing spring R32 → Spring R32, removing and installing
- Unhook parking brake cable from brake calipers.
- Pull parking brake cable out of trailing arm.
- Remove the drive shaft → Rear drive shafts, removing and installing .
- Unclip wire for wheel speed sensor from retainer - arrow -.
- Disconnect ABS vehicle speed sensor from trail arm housing.
- Remove brake line bracket from trailing arm.
- Unclip brake line from retainer - 1 -.
- Remove bolts - 1 - from brake caliper and take off brake caliper.
- Suspend brake caliper from body.
- Remove phillips screw for brake disc and take out brake disc.

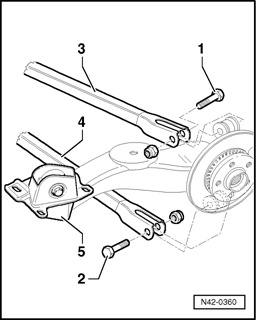

- Remove bolt - 2 - for transverse link.
3 - Upper transverse link
4 - Lower transverse link
5 - Trailing arm
- Position transmission jack under trailing arm
- Remove shock absorber bolt.
- Mark installation position of mounting bracket on body.
- Loosen mounting bracket on body - arrows -.
- Disconnect brake line if necessary.
If the trailing arm is to be replaced, the bearing bracket must be transferred.
The installation position of the mounting bracket must then be adjusted.
