Bonded rubber mountings for final drive, removing and installing: Notes

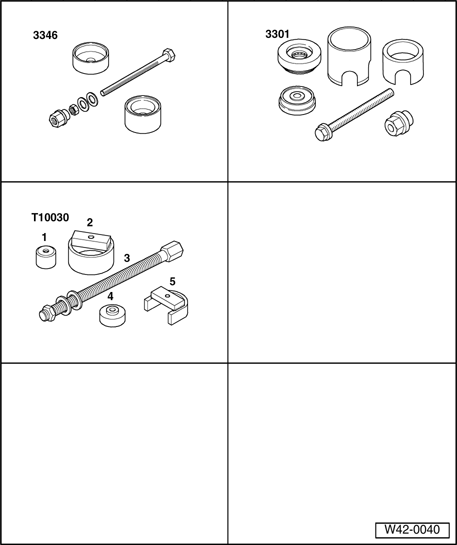

Fig 1: Identifying Special Tools - Bonded Rubber Mountings For Final Drive, Removing And Installing

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Special tools, testers and auxiliary items required

• Support Arm Bearing Inst. Tool 3346
• Assembly Tool 3301
• Tube T10030/2
• Traverse T10030/5

• Front And Rear Bearing Tool 3348
