Removing spring

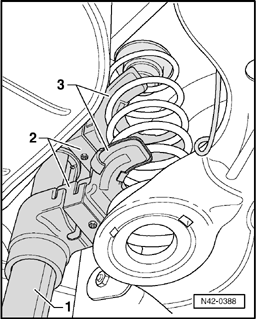

Fig 1: Removing Spring

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Insert spring holder - 1  -.
• Compress coil spring until it can be removed.
• Remove spring.

1 - Spring Compressor V.A.G 1752/1

2 - Adapter VAG1752/9 V.A.G 1752/9

3 - 2 Spring Holders (70-110 mm) V.A.G 1752/3
