Removing hex nut from shock absorber

WARNING: This page is about a different variant/trim than selected.

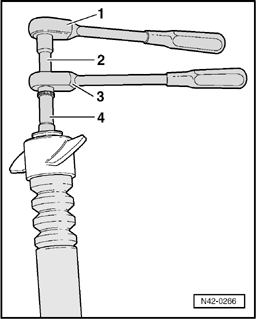

Fig 1: Removing Hex Nut From Shock Absorber
GW00002842Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Ratchet (commercially available)

2 - Socket T10001/9

3 - T10001/11

4 - Socket T10001/1
