Hydraulic bonded rubber bushing, removing and installing: Notes
WARNING: This page is about a different variant/trim than selected.

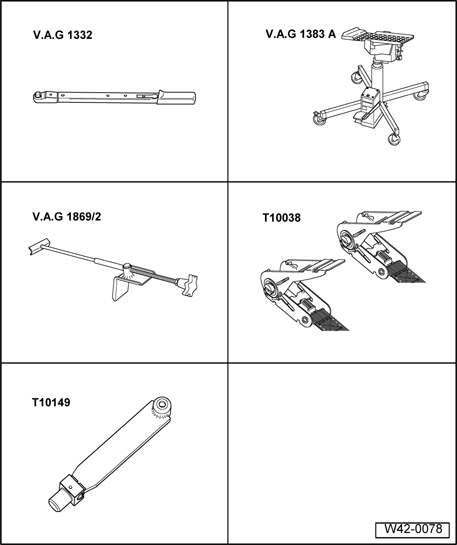

Special tools, testers and auxiliary items required
- Torque Wrench 40-200 Nm V.A.G 1332
- Engine and transmission jack V.A.G 1383 A with universal transmission mount V.A.G 1359/2
- Brake Pedal Actuator V.A.G 1869/2
- Tensioning Strap T10038
- Wheel Hub Support T10149
- Hydraulic Press VAS6178 VAS 6178
- Hollow Piston Cylinder VAS 6179
- Basic Set For Hydraulic Bearing VAS 6180
After installing the hydraulic bonded rubber mountings, only "conventional" bonded rubber mountings must be installed.
The hydraulic bonded rubber bushings must be replaced on both sides of rear axle. A mixed installation is not allowed.
