Right bonded rubber bushing, installing

Fig 1: Rubber Bushing Marked On Face With The Marks And Align With The Edge On Trailing Arm

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Bonded rubber bushing is marked on face with the marks - 1  -.

They must align with the edge - arrow  - on trailing arm - 2  -.

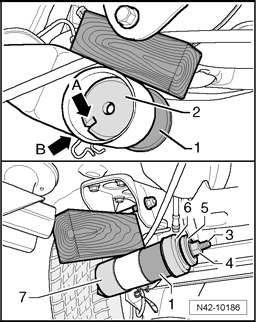

Fig 2: Installing Right Bonded Rubber Bushing

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Insert the bonded rubber bushing - 1  - with the press piece 3416/2 - 2  - into the rear axle.

The tab of the bonded rubber bushing must be positioned in the cut-out - arrow A  - and point toward the edge - arrow B  - of the trailing arm.

• Pull the bonded rubber bushing - 1  - into the rear axle.

1. Bonded rubber mounting
2. Press piece 3416/2
3. Assembly Tool 3301
4. Assembly Tool 3301
5. Assembly Tool 3301
6. Press piece 3416/1
7. Press piece 3416/3

For the remainder of the procedure.
