Left bonded rubber bushing, installing

WARNING: This page is about a different variant/trim than selected.

Fig 1: Rubber Bushing Marked On Face With The Marks And Align With The Edge On Trailing Arm

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Bonded rubber bushing is marked on face with the marks - 1 -.

They must align with the edge - arrow - on trailing arm - 2 -.

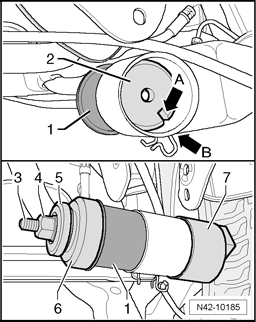

Fig 2: Installing Left Bonded Rubber Bushing

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Insert the bonded rubber bushing - 1 - with the press piece 3416/2 - 2 - into the rear axle.

The tab of the bonded rubber bushing must be positioned in the cut-out - arrow A - and point toward the edge - arrow B - of the trailing arm.

Grease the kidney-shaped cavities of the bonded rubber bushing Grease the kidney-shaped cavities of the bonded rubber bushing with under Bonded rubber bushing, removing and installing
Set the rear axle into the mounting bracket and secure it with a new bolt and a new nut, but do not tighten yet.

For the remainder of the procedure.
