Modified mounting for stabilizer bar

Affected vehicles:

• Vehicles with all-wheel drive

1 - Nut, 90 Nm

2 - Control arm

3 - Hex bolt, 15 Nm and 90 °

4 - Bracket

5 - Nut, 90 Nm

6 - Stabilizer bar

7 - Connecting Link

A - Upper threaded pin

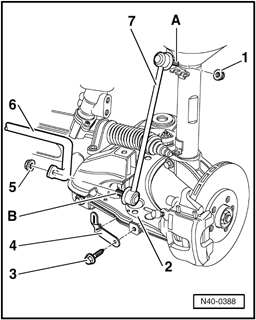

Fig 1: Modified Mounting For Stabilizer Bar

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Install ball joint with long thread - A  - at top on spring plate.

B - Lower threaded pin

• Install ball joint with short thread - B  - , at bottom on stabilizer bar.
