Bonded rubber bushing for control arm, replacing: Notes

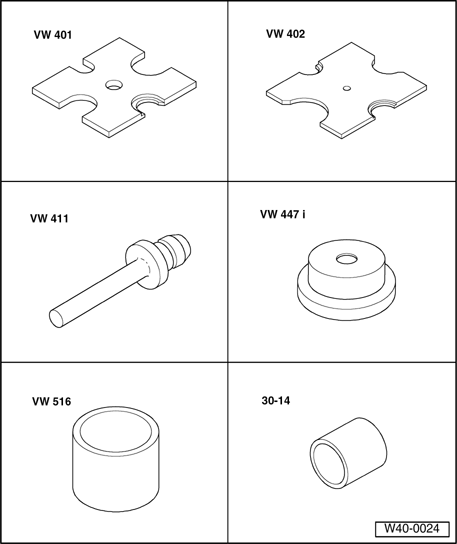

Fig 1: Identifying Special Tools - Bonded Rubber Bushing For Control Arm, Replacing (1 Of 2)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Special tools, testers and auxiliary items required

• Thrust Plate VW 401
• Thrust Plate VW 402
• Punch VW 411
• Thrust pad VW 447 i

• Tube 42 mm dia. VW 516
• Tube 30 - 14

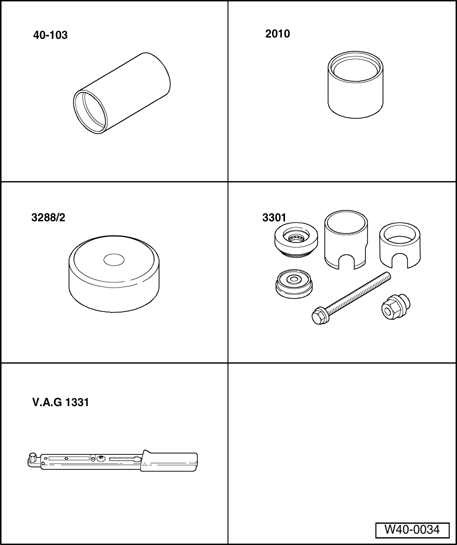

Fig 2: Identifying Special Tools - Bonded Rubber Bushing For Control Arm, Replacing (2 Of 2)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Special tools, testers and auxiliary items required

• Support 40 - 103
• Sleeve 2010
• Press piece 3288/2
• Assembly Tool 3301
• Torque Wrench 5-50 Nm V.A.G 1331
