Bonded rubber bushings for subframe, replacing: Notes

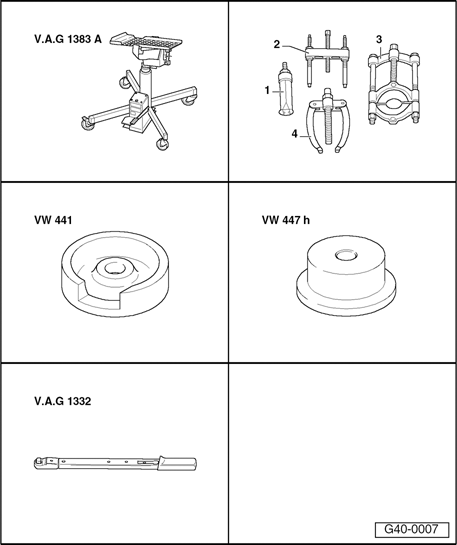

Fig 1: Identifying Special Tools - Bonded Rubber Bushings For Subframe, Replacing

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Special tools, testers and auxiliary items required

• Engine and transmission jack V.A.G 1383 A
• - 3  - Separating device Kukko 17/1
• Base Block VW 441
• Thrust pad VW 447 H

• Torque Wrench 40-200 Nm V.A.G 1332
