Bonded rubber bushing for control arm, replacing: Notes

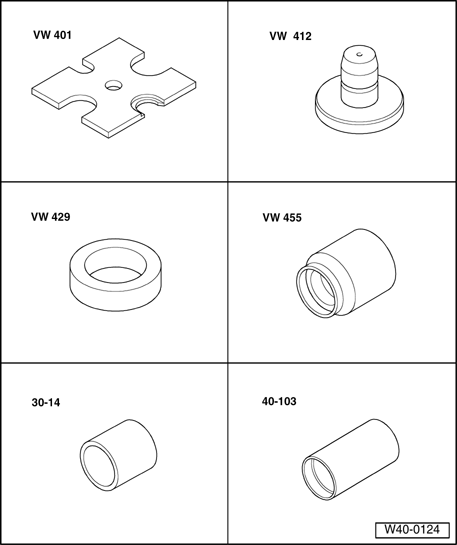

Fig 1: Identifying Special Tools - Bonded Rubber Bushing For Control Arm, Replacing

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Special tools, testers and auxiliary items required

• Thrust Plate VW 401
• Thrust Disc VW 412
• Thrust Ring VW 429
• Thrust Tube VW 455

• Tube 30 - 14
• Support 40 - 103

Special tools, testers and auxiliary items required

Fig 2: Thrust Piece T10030/1

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Thrust Piece T10030/1

Fig 3: Identifying Kukko Tools

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• - 2  - Puller Kukko 18/1
• - 3  - Separating device Kukko 17/1
