Triple-rotor joint AAR 3300i, disassembling and assembling: Assembling
WARNING: This page is about a different variant/trim than selected.
- Slide small clamp for joint protective boot onto shaft.
- Slide joint protective boot onto shaft.
- Slide joint onto shaft.

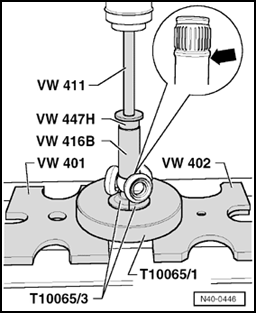

Assembling triple roller star
Conical-type axle shaft
The chamfer on tripodic star faces toward shaft, this is used as an assembly aid.
- Install triple roller star onto shaft and press onto stop.
- Make sure that the pressure does not exceed 3.0 t!
- If necessary coat drive shaft splines and triple-roller star with lubricating paste G 052 142 A2 .
- Insert circlip, make sure seated correctly.
- Press 70 grams of joint grease from repair set, into triple roller joint.
- Slide joint over rollers and hold.
- Press 60 grams of joint grease, from repair set, into the reverse side of the triple roller joint.
- Install joint protective boot.

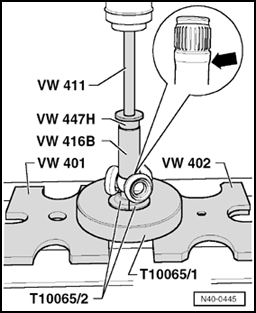

Assembling triple roller star
Cylindrical-type axle shaft
- Install triple roller star onto shaft and press onto stop.
- Make sure that the pressure does not exceed 3.0 t!
- If necessary coat drive shaft splines and triple-roller star with lubricating paste G 052 142 A2 .
- Insert circlip, make sure seated correctly.
- Press 70 grams of joint grease from repair set, into triple roller joint.
- Slide joint over rollers and hold.
- Press 60 grams of joint grease, from repair set, into the reverse side of the triple roller joint.
- Install joint protective boot.
- Install clamp.
NOTE:
- For a better alignment of the multi-point socket head bolts when mounting the axle shaft, it is necessary that the clamping ear of the clamp - arrow A - is placed between the fixing flanges from the joint - arrow B -.
- Tighten clamp with Hose Clamp Pliers V.A.G 1275.
- Tighten clamp with Hose Clamp Pliers V.A.G 1275.
