1st to 3rd gear clutch -K1-, disassembling and assembling: Notes

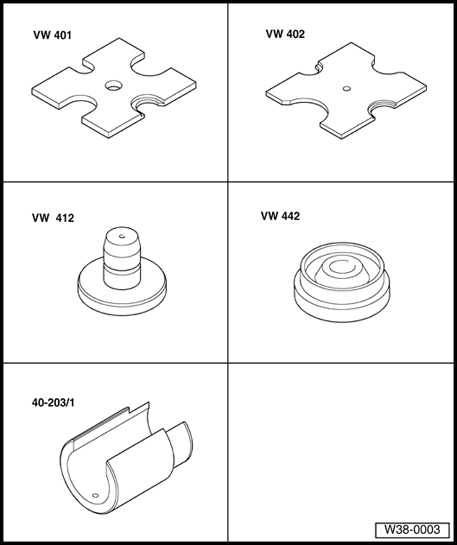

Special tools and equipment required

• VW 401 Thrust plate
• VW 402 Thrust plate
• VW 412 Press tool
• VW 442 Thrust pad

• 40-203/ 1 Tube, split

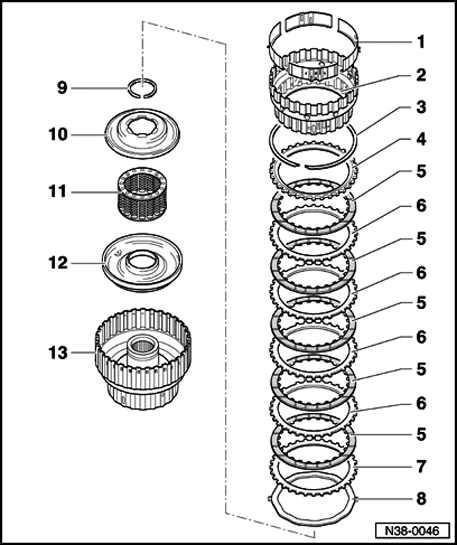

1 - Supporting ring

• 4-piece, unclip from inner plate carrier
• Inserting. See Installing thrust plate and plates onto inner plate carrier

2 - Inner plate carrier

• Inserting. See Inserting inner plate carrier and installing circlip (arrow).
• Assembling. See Installing thrust plate and plates onto inner plate carrier

3 - Circlip

• Different thicknesses
• Mark after removing and insert in same position

4 - Thrust plate

• Smooth side faces inner plate
• Insert together with inner plate carrier. See Installing thrust plate and plates onto inner plate carrier

5 - Inner plate

• Quantity. Refer to Code letters, application, ratios, equipment
• Installing. See Installing thrust plate and plates onto inner plate carrier

6 - Outer plate

• Quantity. Refer to Code letters, application, ratios, equipment
• Installing. See Installing thrust plate and plates onto inner plate carrier
• Always 1.5 mm thick

7 - Outer plate

• Always 2 mm thick
• Installing. See Installing thrust plate and plates onto inner plate carrier

8 - Corrugated washer

9 - Circlip

• Removing and installing. See Removing and installing circlip

10 - Piston cap

• Sealing lips are vulcanized to cap
• Moisten sealing lips with ATF before installing
• Turn cap slightly when installing

11 - Intermediate spring ring

• With spring supporting shell and compression springs

12 - Piston

• Sealing lips are vulcanized to piston
• Moisten sealing lips with ATF before installing
• Turn piston slightly when installing

13 - Clutch housing

• Before inserting inner plate carrier corrugated washer (item -8 ), insert inner and outer plates in clutch. See Installing corrugated washer and inner and outer plates in clutch housing
