Glove box, servicing
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Cabrio, and 1998 Volkswagen Cabrio. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

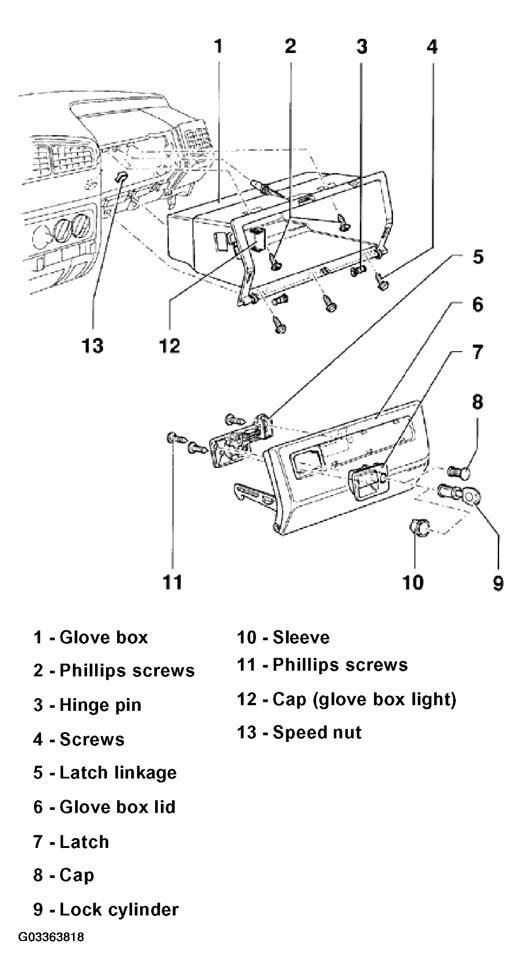

The following list refers to items in Fig 1
.
- - Glove box
- - Phillips screws
- - Hinge pin
- - Screws
- - Latch linkage
- - Glove box lid
- - Latch
- - Cap
- - Lock cylinder
- Common key locking can be maintained in vehicle by changing over or attaching locking plates.
- - Sleeve
- Key must be inserted to remove sleeve
- - Phillips screws
- - Cap (glove box light)
- - Speed nut
