Terminal identification of instrument cluster 28-pin connector socket 2 (-T28b-)

NOTE:

• Socket 2 installed in instrument cluster up to July 1995.
• From August 1995 all cables are connected to socket 1, socket 2 has been discontinued!

NOTE: The following list refers to items in Fig 1.

1. - Airbag functions check
2. - Airbag control wire
3. - Seat belt warning light -K19-
4. - Open
5. - Open
6. - Rear hatch/trunk lid ajar warning light -K102-
7. - Open
8. - Open
9. - Open
10. - Open
11. - Open
12. - Airbag terminal 15
13. - Airbag terminal 31
14. - Open
15. - Open
16. - Open
17. - Open
18. - Open
19. - Open
20. - Open
21. - Open
22. - Open
23. - Open
24. - Open
25. - Open
26. - Open
27. - Open
28. - Open

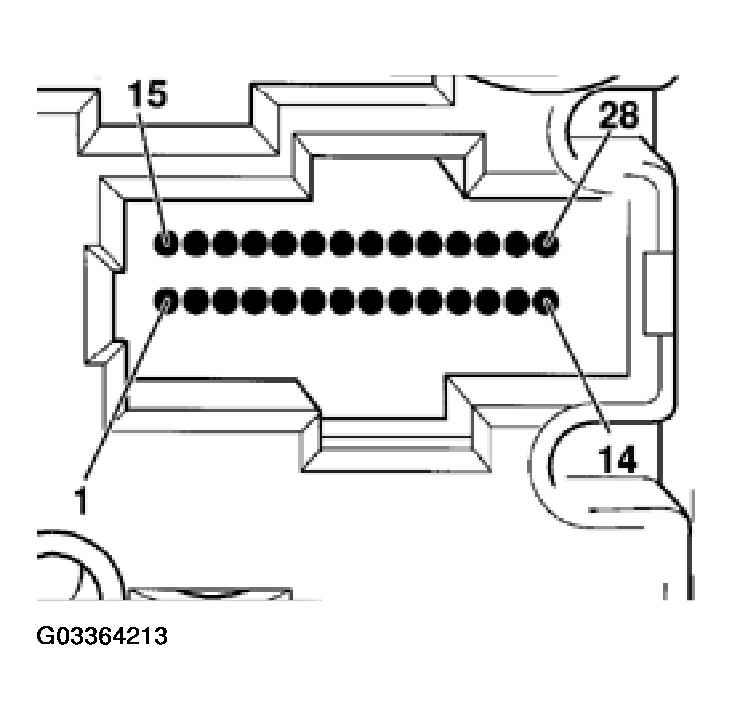

Fig 1: Identifying Terminal Of Instrument Cluster 28 Pin Connector Socket 2 (T28b)

Courtesy of VOLKSWAGEN OF AMERICA, INC.
