Battery Fuse Panel

Battery fuse panel is located on battery. See Fig 1.

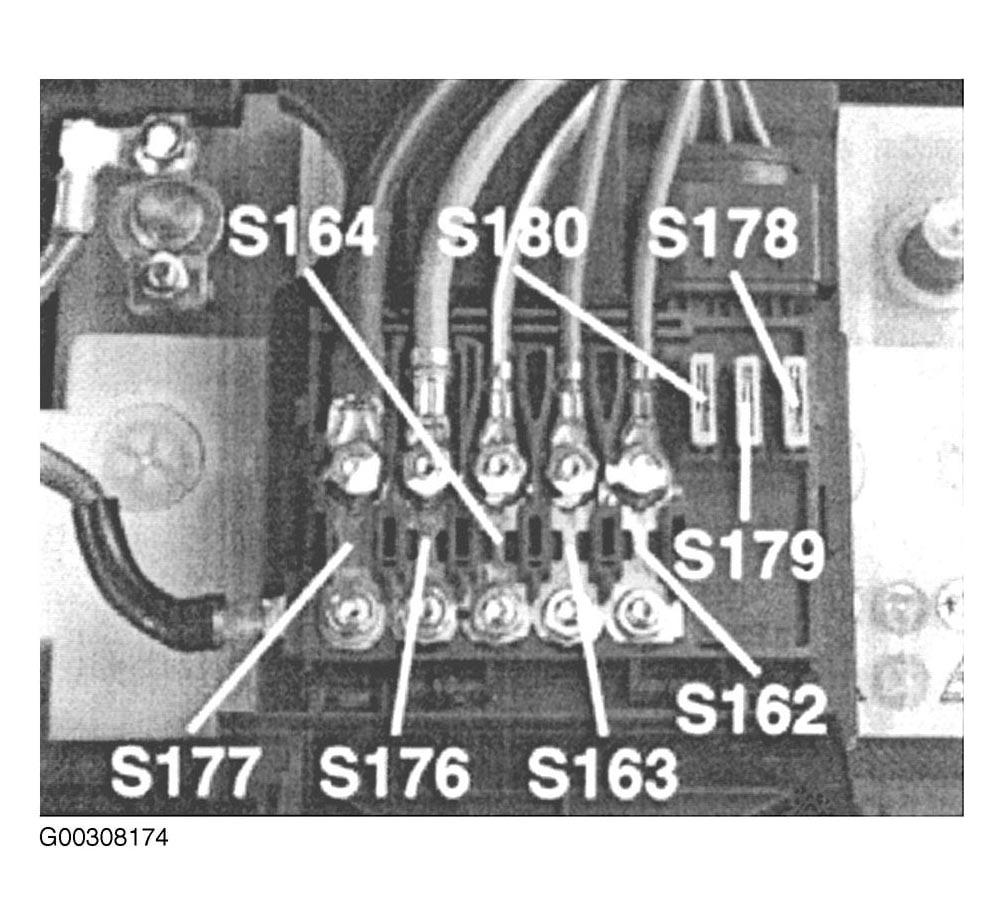

Fig 1: Identifying Battery Fuse Panel Fuses

Courtesy of VOLKSWAGEN UNITED STATES, INC.

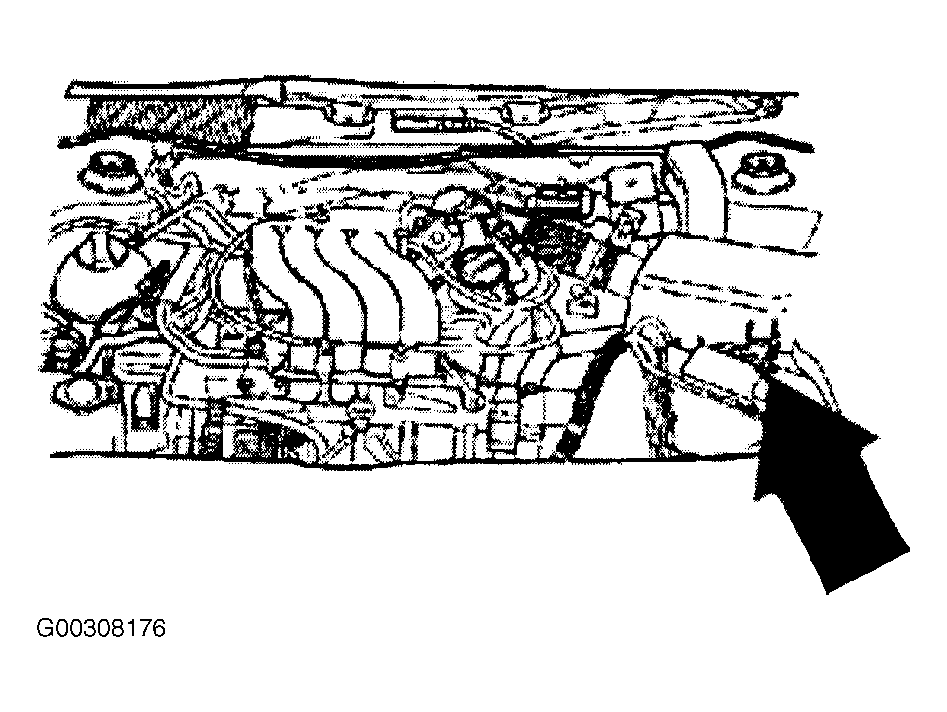

Fig 2: Locating Thirteenfold Battery Fuse Panel Fuses

Courtesy of VOLKSWAGEN UNITED STATES, INC.

FUSE IDENTIFICATION (BATTERY FUSE PANEL)

Fuse No.

Amp Rating

Circuits Protected

162

AEG, AFP

Secondary Air Injector Pump

ALH

Preheating Coolant Relay (Low & High Heat)

163

AEG, AFP

Fuel Pump

ALH

Glow Plug Relay

164

Coolant Fan Control (FC) Control Module

176

110

Ignition/Starter Switch, Power Supply Relay (B+ Terminal), Passenger Compartment Fuse Panel, Load Reduction Relay

177

AEG, AFP

110

Generator

ALH

150

Generator

178

ABS Control Module

179

ABS Control Module

180

30 ⁽¹⁾

FC Control Module, CF Thermal Switch

⁽¹⁾	On vehicles equipped with 2.8L V6 engine (AFP), amperage is 40.
