Front bumper, removing and installing: Notes

NOTE: The following list refers to items in Fig 1 .

1. - Hex-head screw (four)
   • 10 N.m (7 ft lb)
2. - Carrier
3. - Plastic foam
4. - Plastic insulator
5. - Guide
   • Remove or install cover -8- by pulling out of or pushing into both guides (left and right) in parallel
6. - Front side marker light -M11-
7. - Spreader rivet
   • Connects cover to wheel housing liner
8. - Cover
   • Material: PP/EPDM

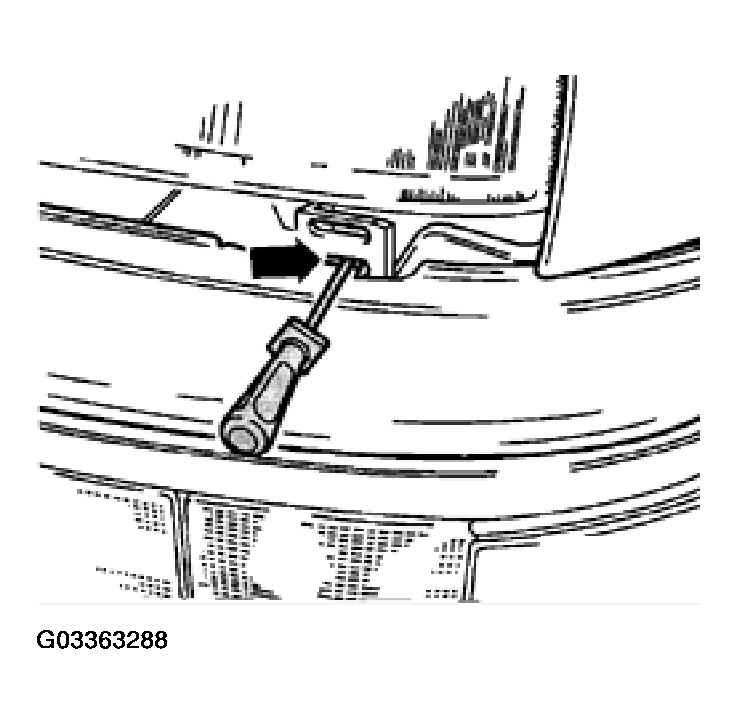

   • Removing and installing, refer to Figure

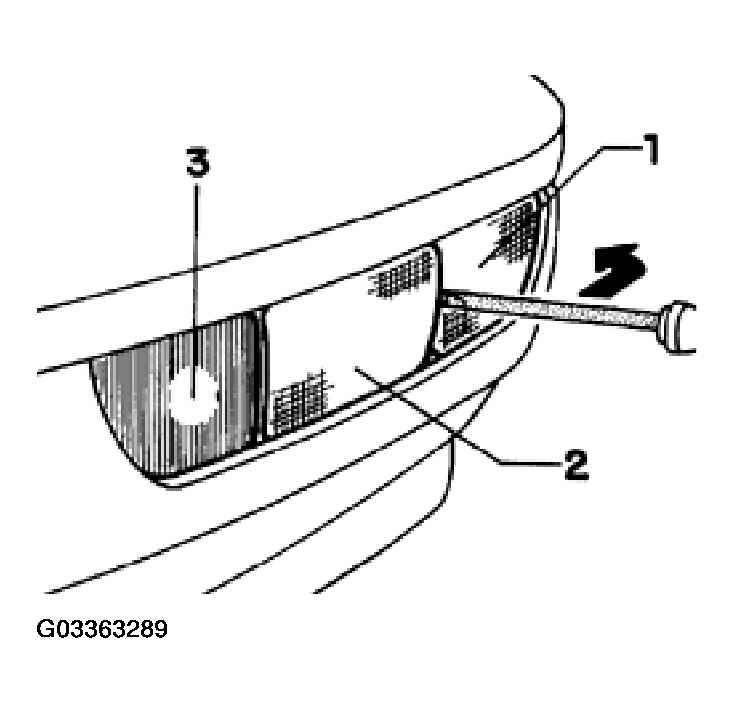

   • Towing eye cover, removing and installing, refer to Figure
9. - Hex-head screw
   • Qty: 8
   • 23-25 N.m (17-18 ft lb)
10. - Hex-head screw
    • Qty: 4
    • 30 N.m (22 ft lb)
11. - Hex-head screw
    • Qty: 2
    • 5 N.m (44 in lb)
12. - Hex-head screw
    • Qty: 2
    • 10 N.m (7 ft lb)
13. - Cover element
    • For painted covers only
14. - Hex-head screw
    • Qty: 5
    • 4.5 N.m (40 in. lb)
15. - Spoiler
    • Fits into cover

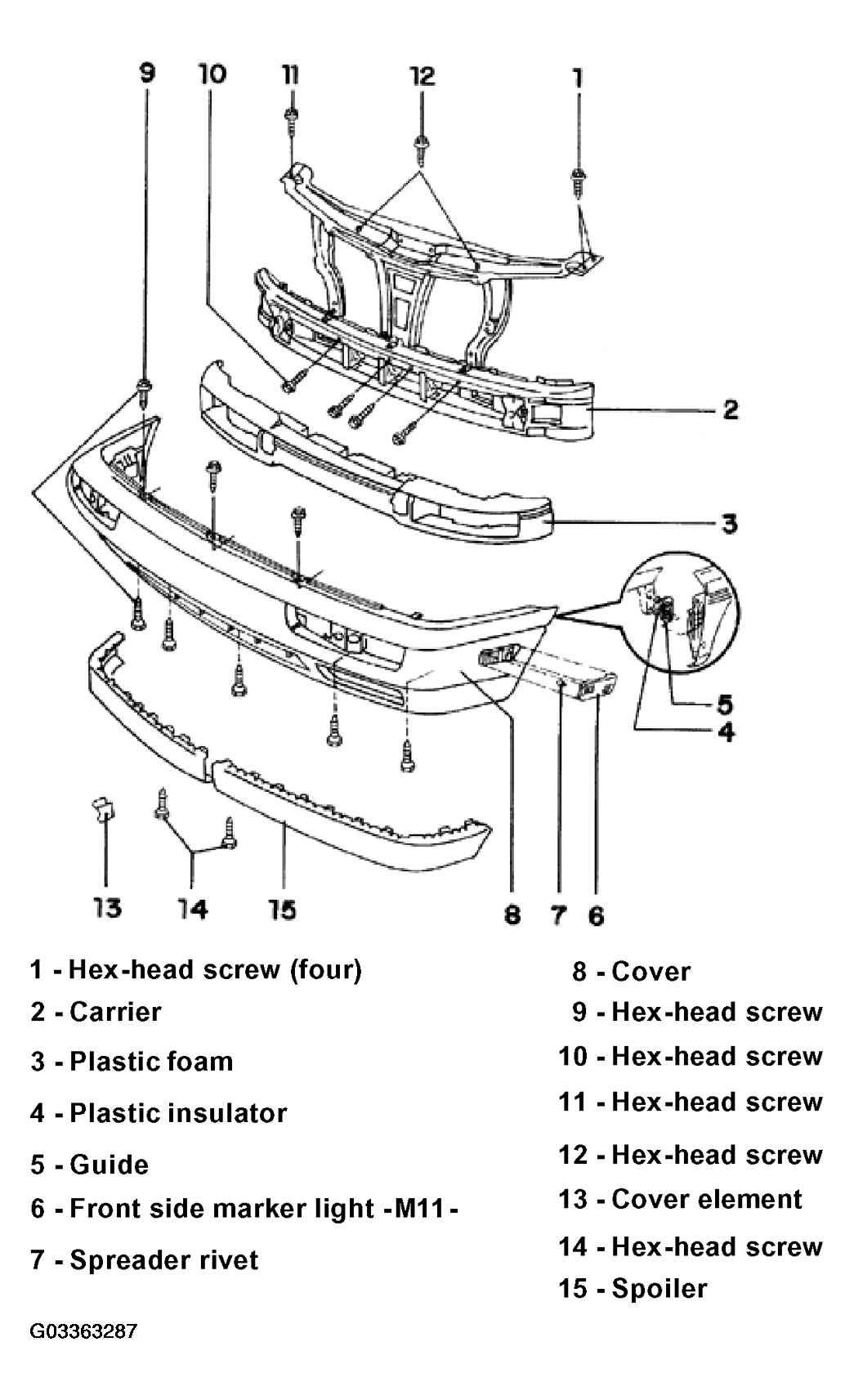

Fig 1: Exploded View Of Front Bumper
