Control Arm & Bushings: Bushing

Clamp control arm into soft-jawed vise. Use illustration to aid in removal and installation of bushings. See Fig 1 .

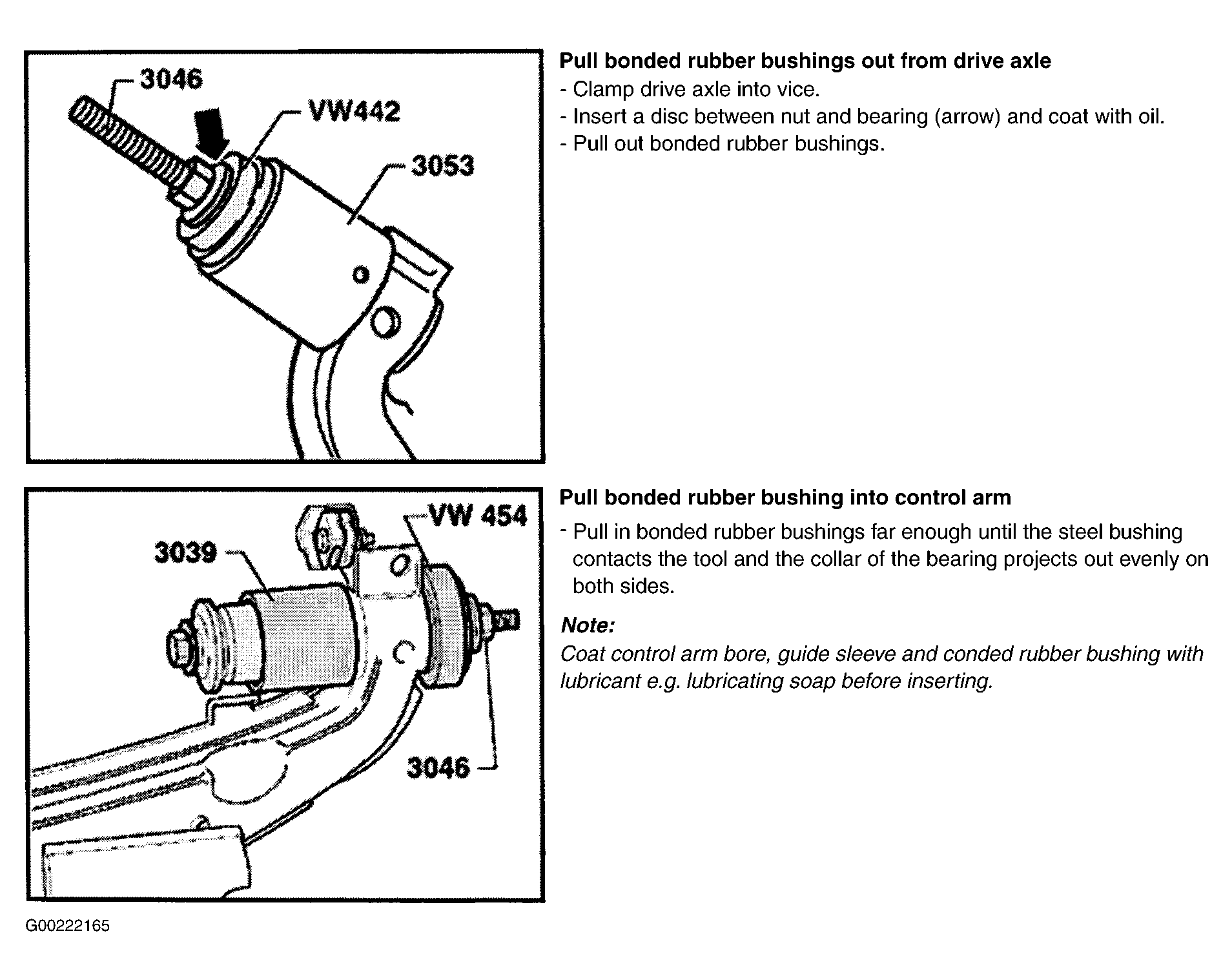

Fig 1: Removing & Installing Control Arm Bushing

Courtesy of VOLKSWAGEN UNITED STATES, INC.
