Suspension - Rear: Description

EuroVan is equipped with independent rear suspension, major components included control arms, coil springs, shock absorbers, stabilizer bar, drive axle and wheel bearings. Brake discs rotate on a wheel hub assembly pressed into control arm. See Fig 1 .

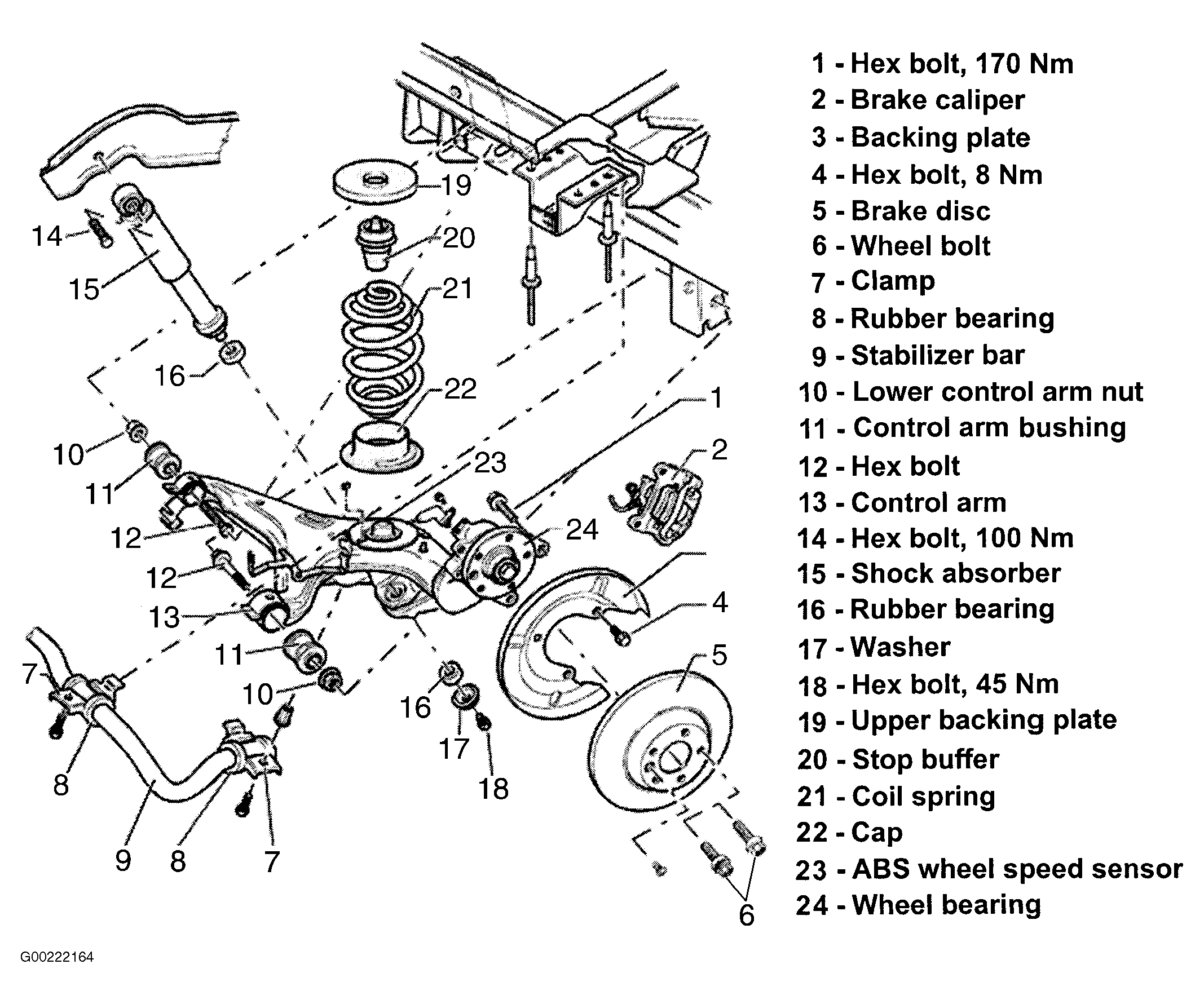

Fig 1: Exploded View Of Rear Suspension Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.
