Coil Spring Applications

Use following illustrations to identify coil springs and pull-spring of brake booster applications. See Fig 1 -Fig 14 .

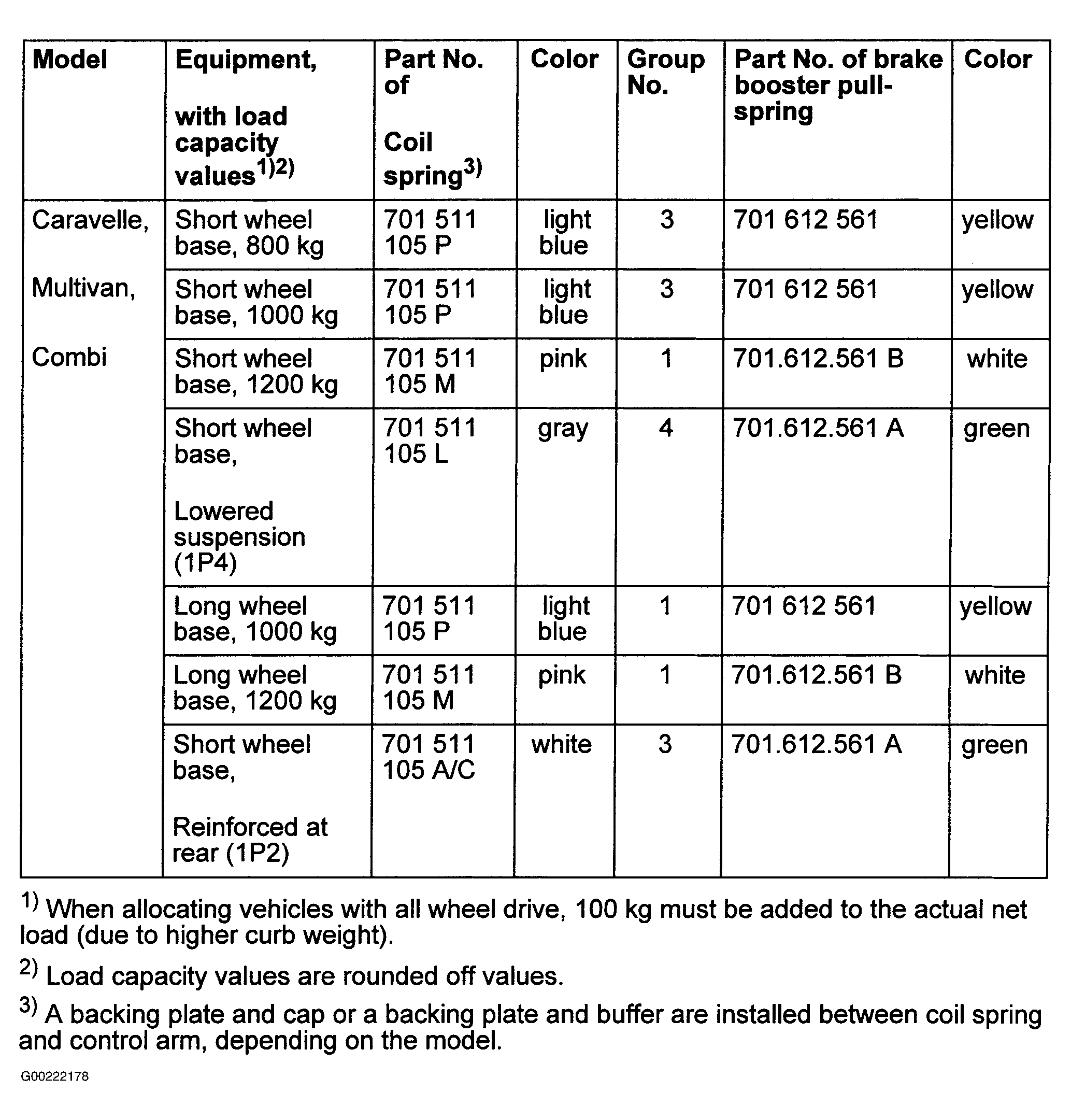

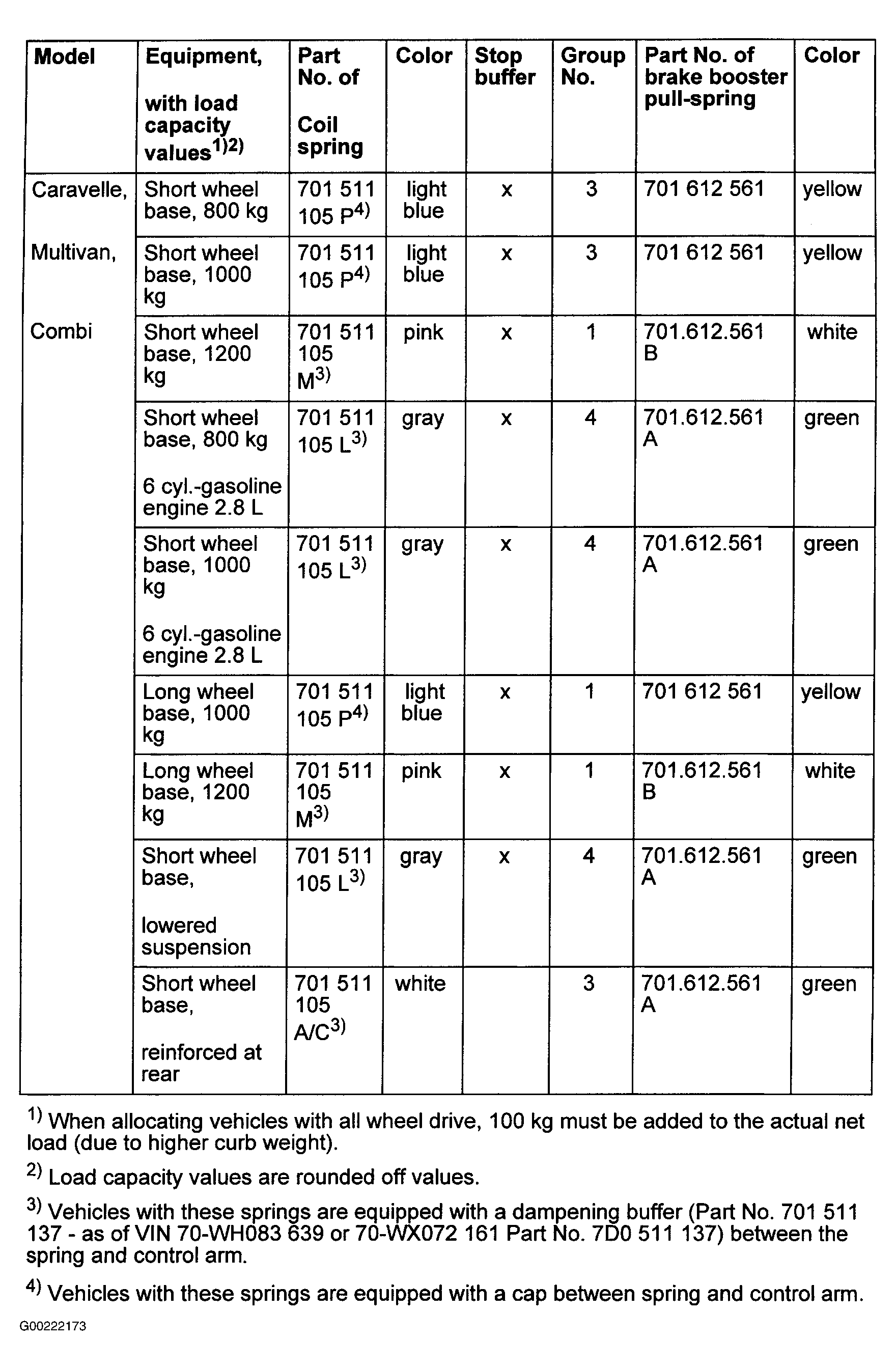

Fig 1: Coil Spring Applications (Up To 04/2000 - 1 Of 4)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

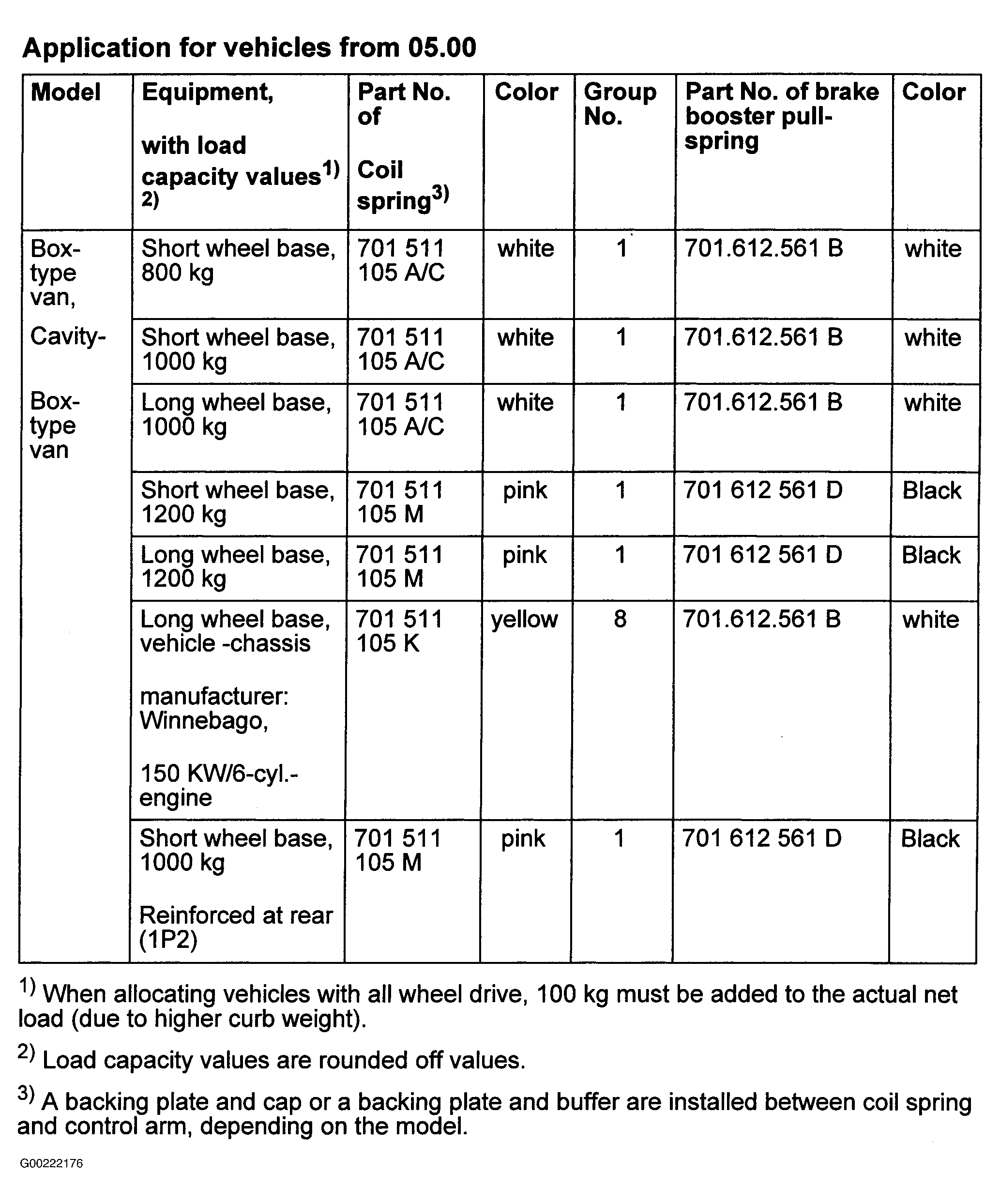

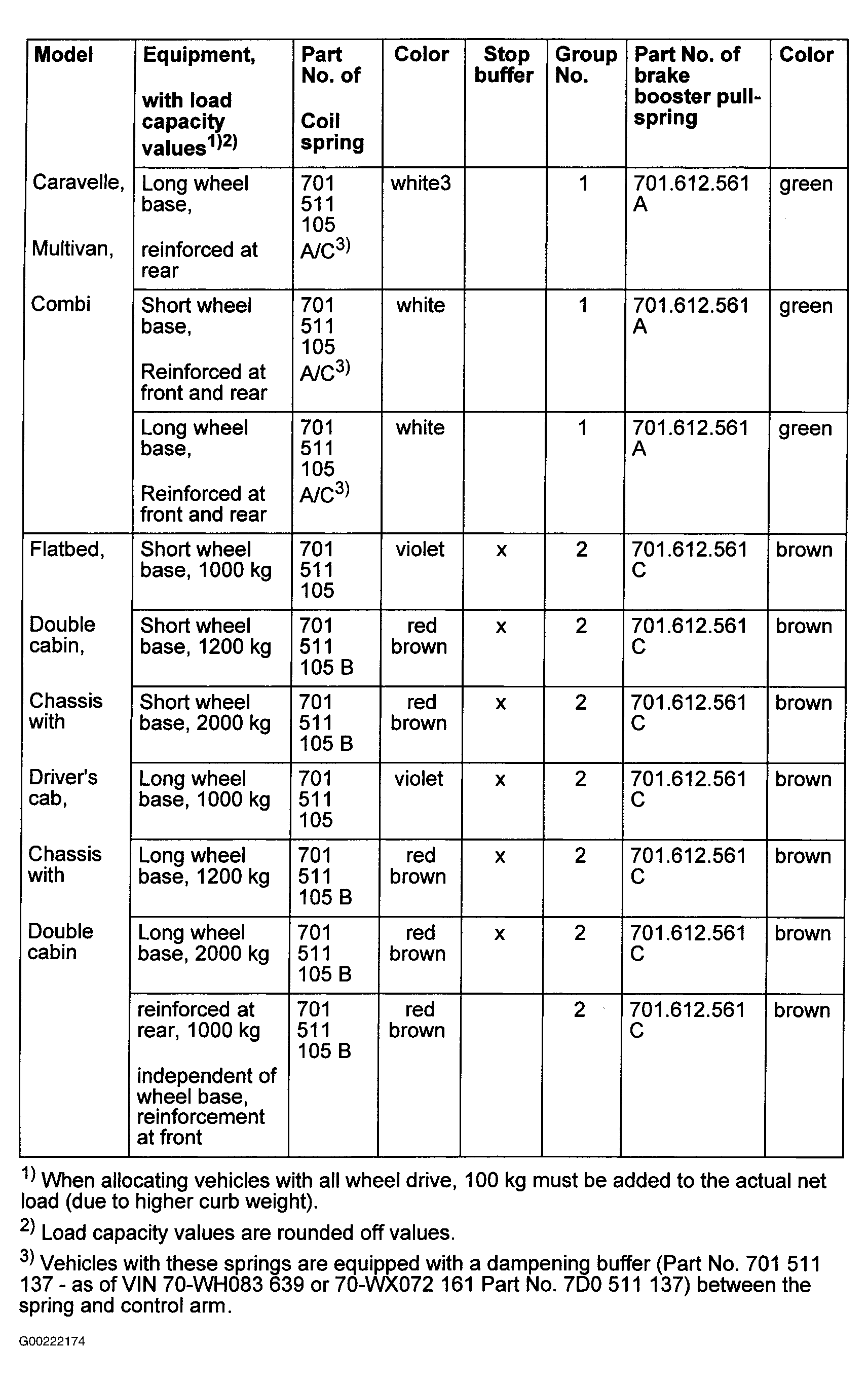

Fig 2: Coil Spring Applications (Up To 04/2000 - 2 Of 4)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

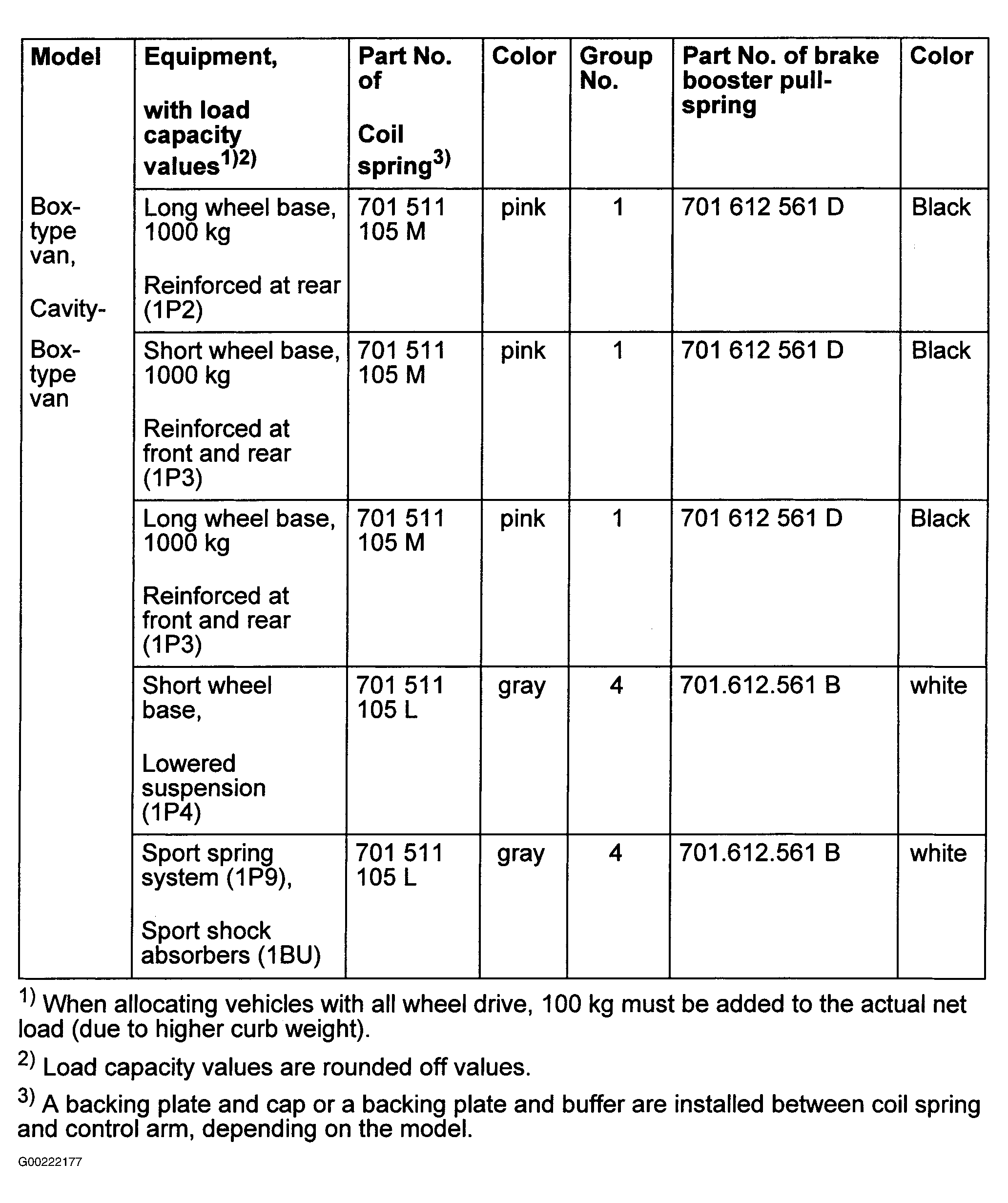

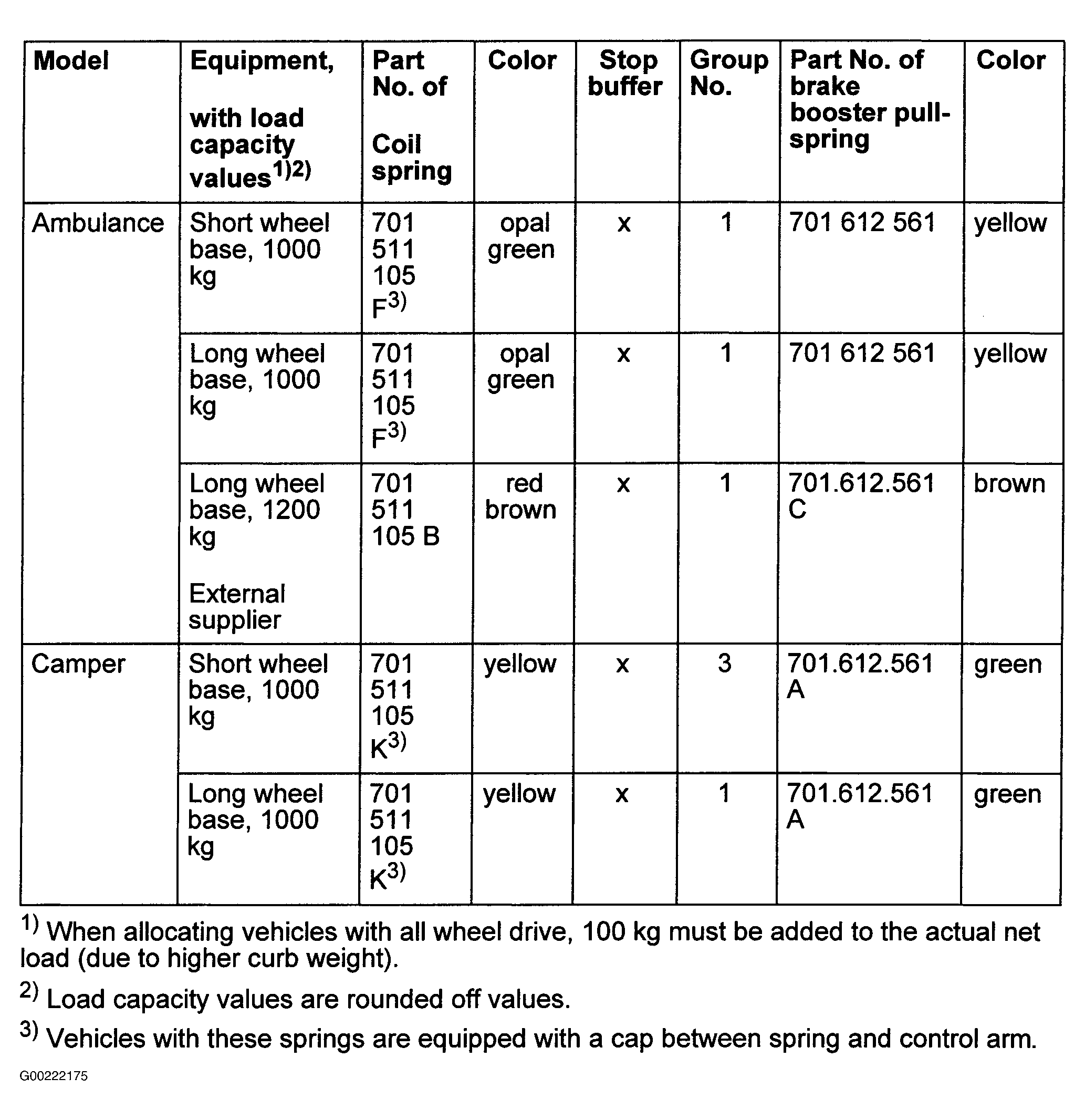

Fig 3: Coil Spring Applications (Up To 04/2000 - 3 Of 4)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

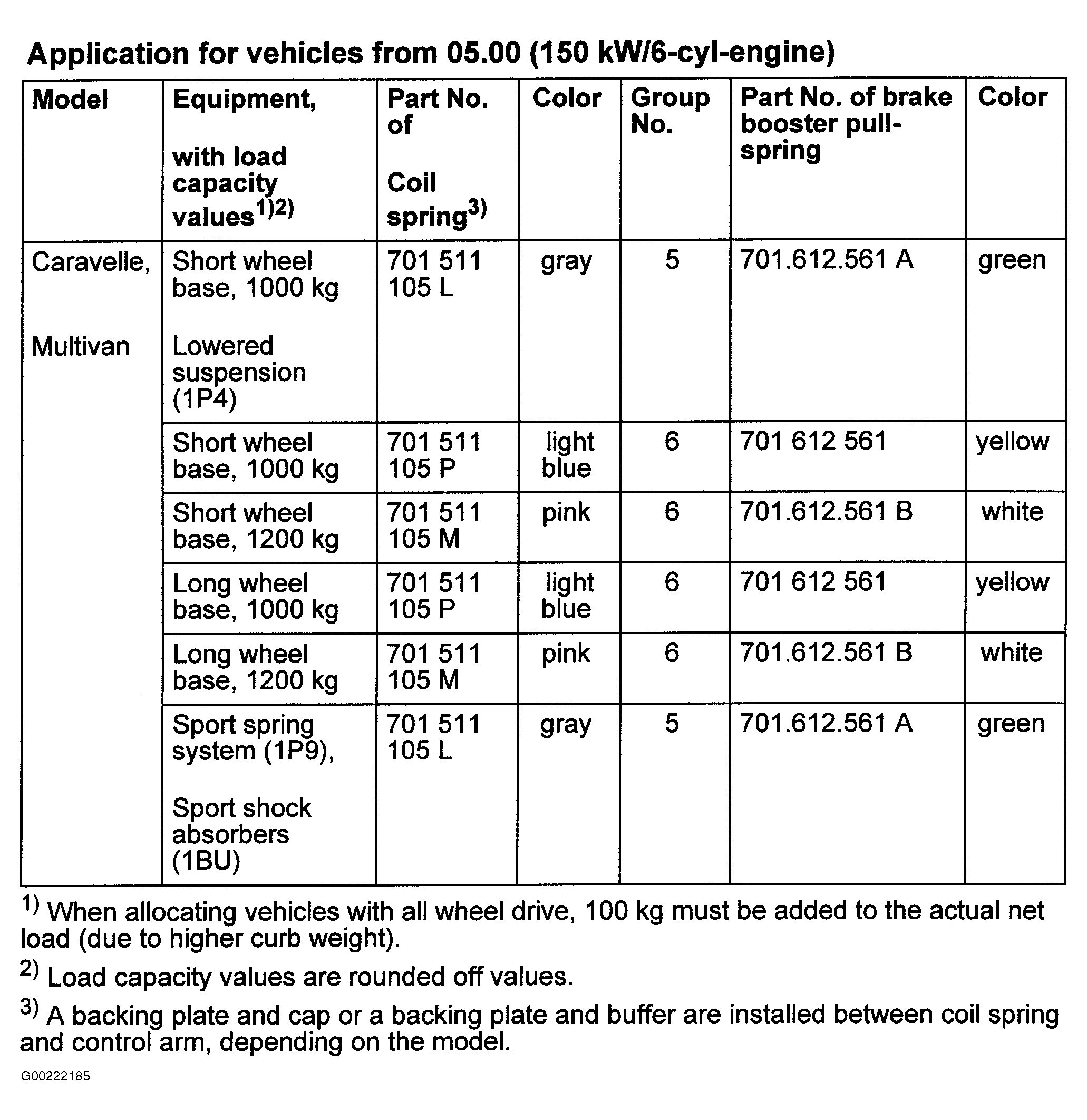

Fig 4: Coil Spring Applications (Up To 04/2000 - 4 Of 4)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

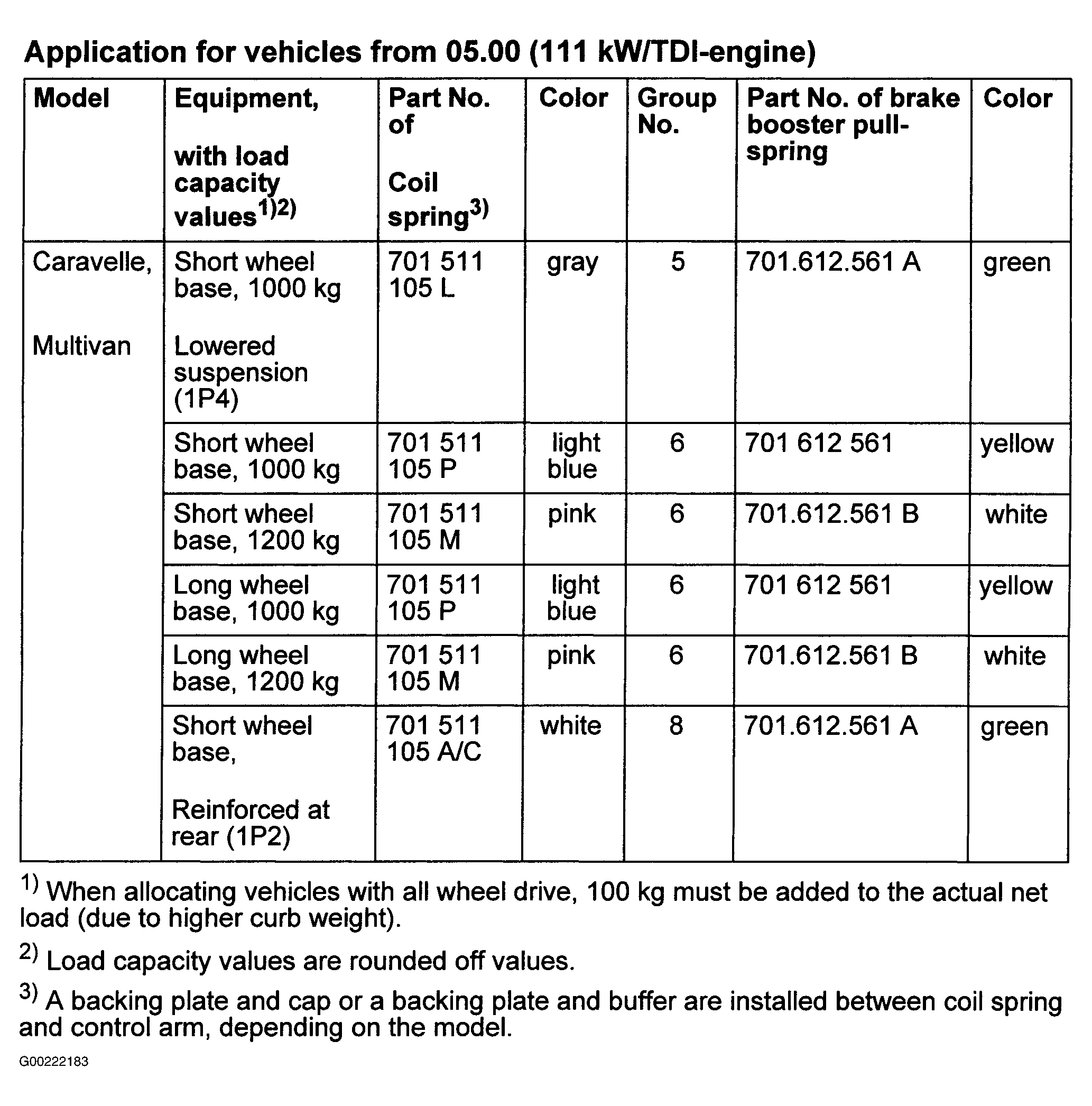

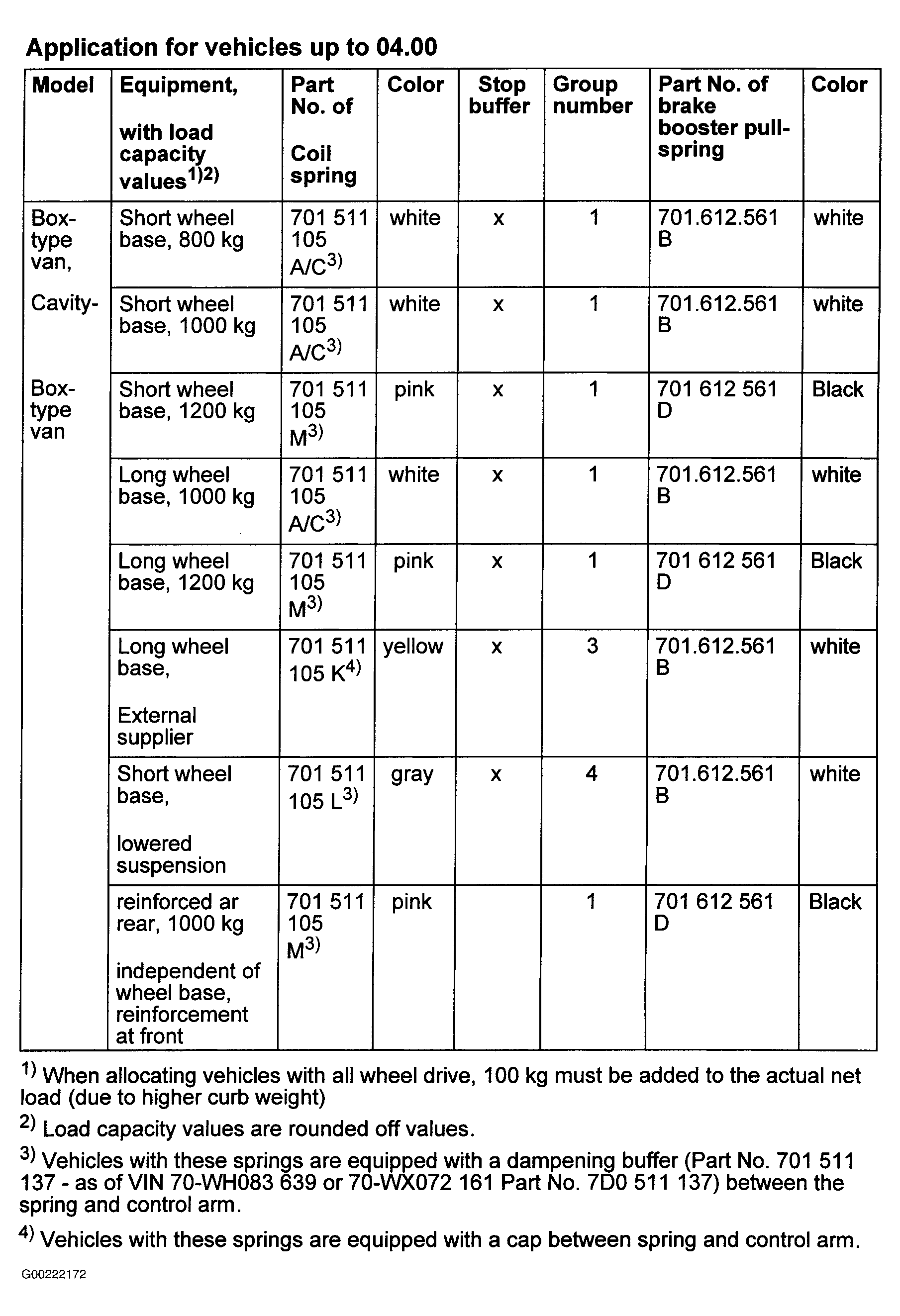

Fig 5: Coil Spring Applications (From 05/2000 - 1 Of 7)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

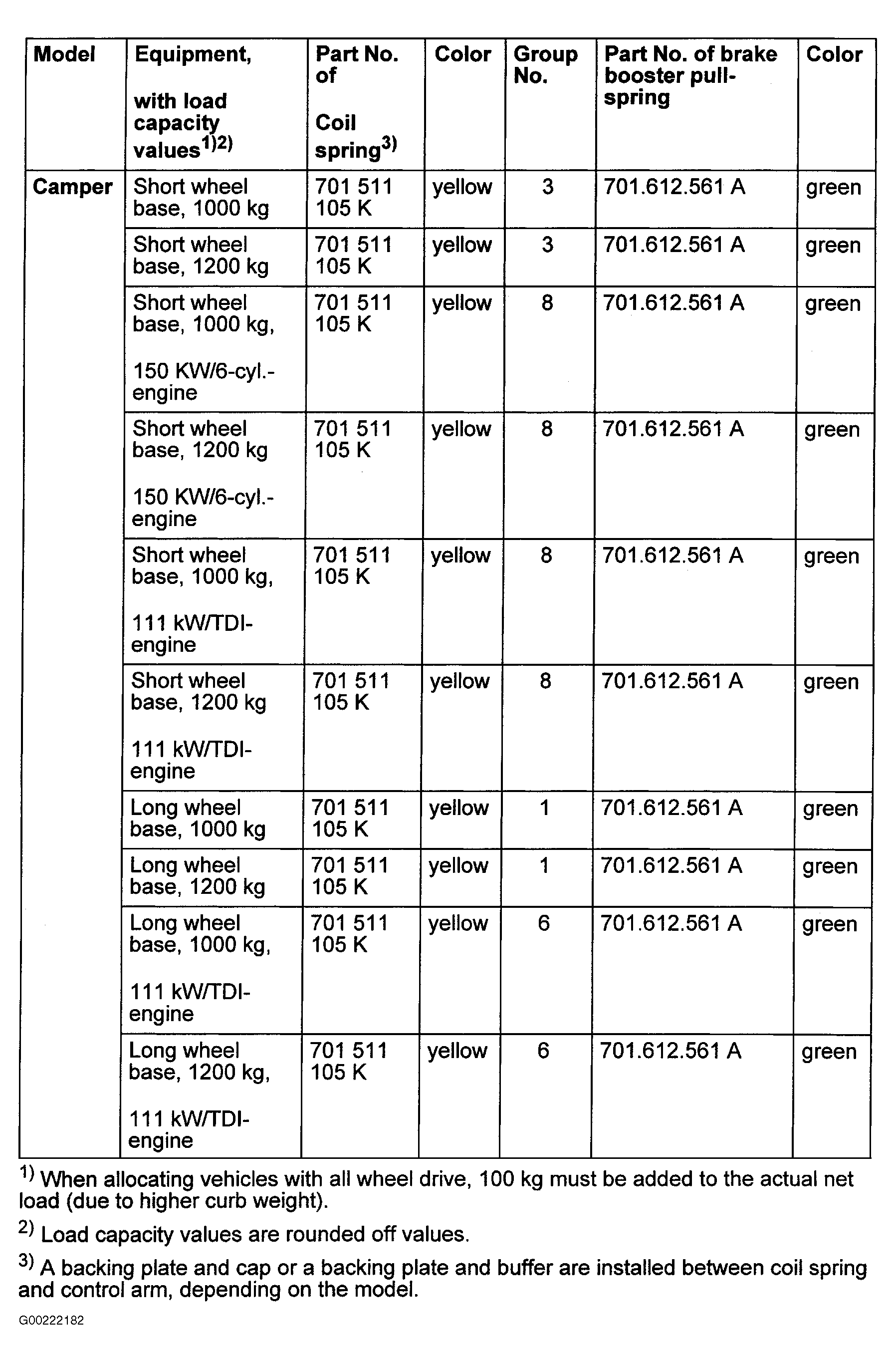

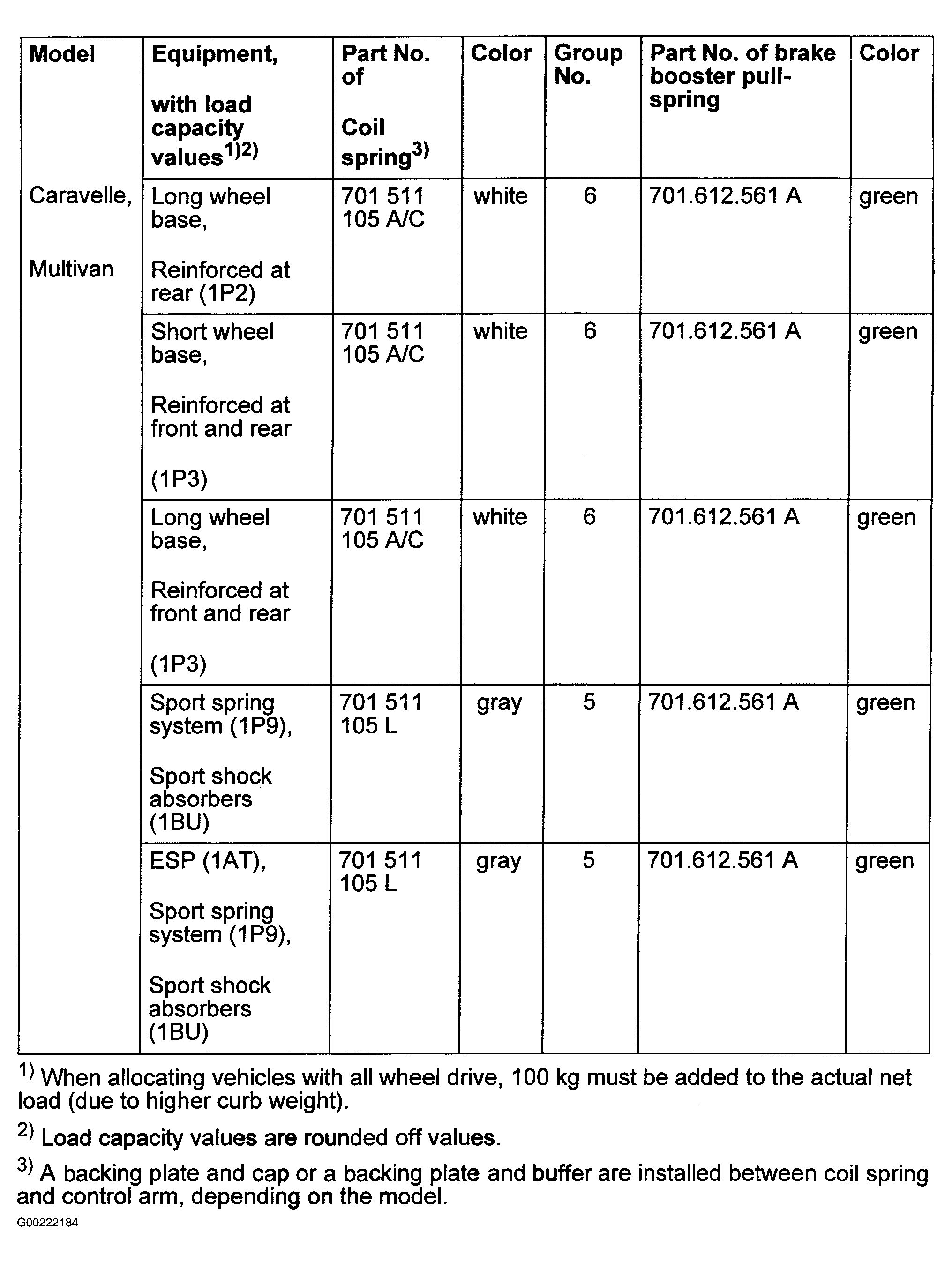

Fig 6: Coil Spring Applications (From 05/2000 - 2 Of 7)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

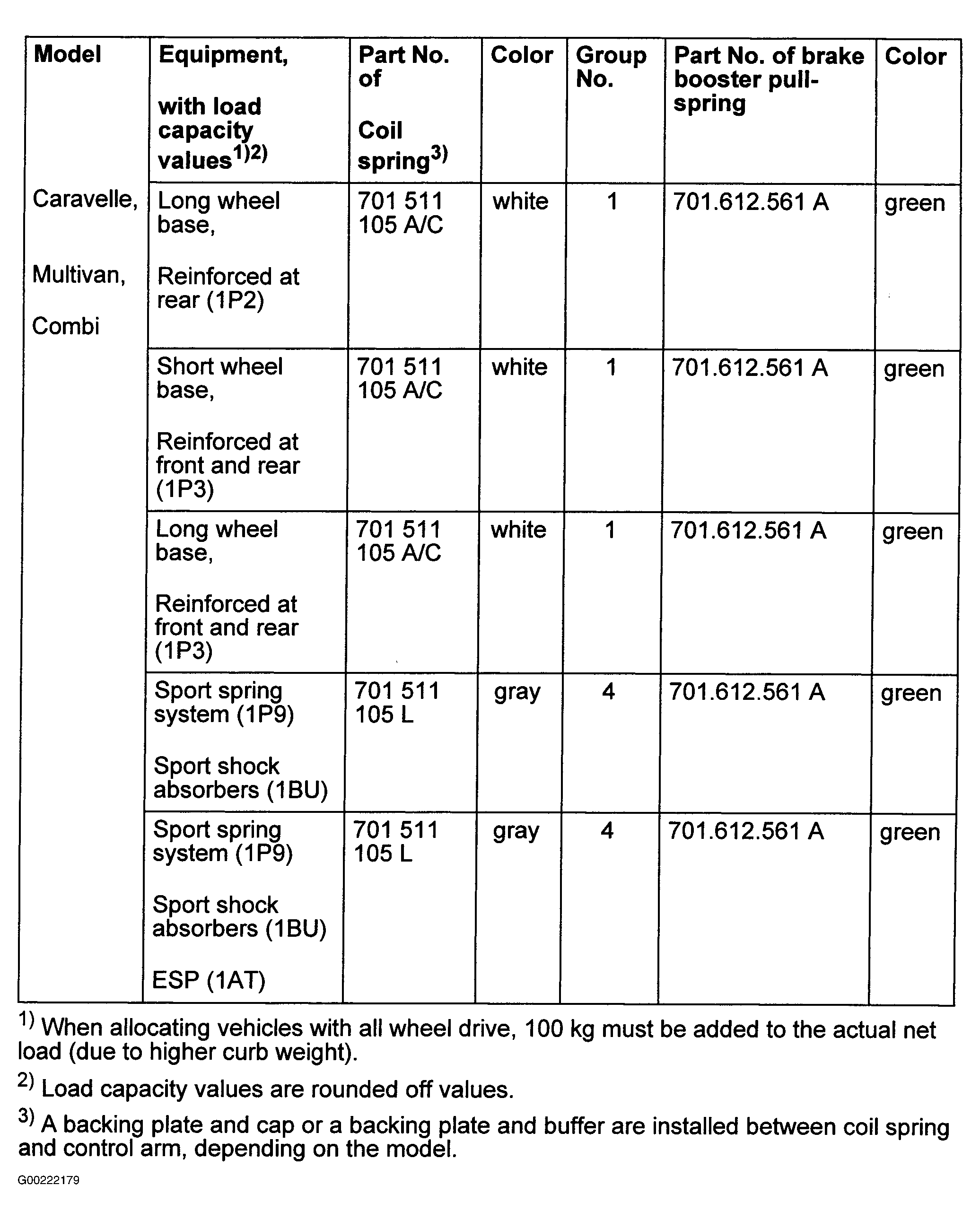

Fig 7: Coil Spring Applications (From 05/2000 - 3 Of 7)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

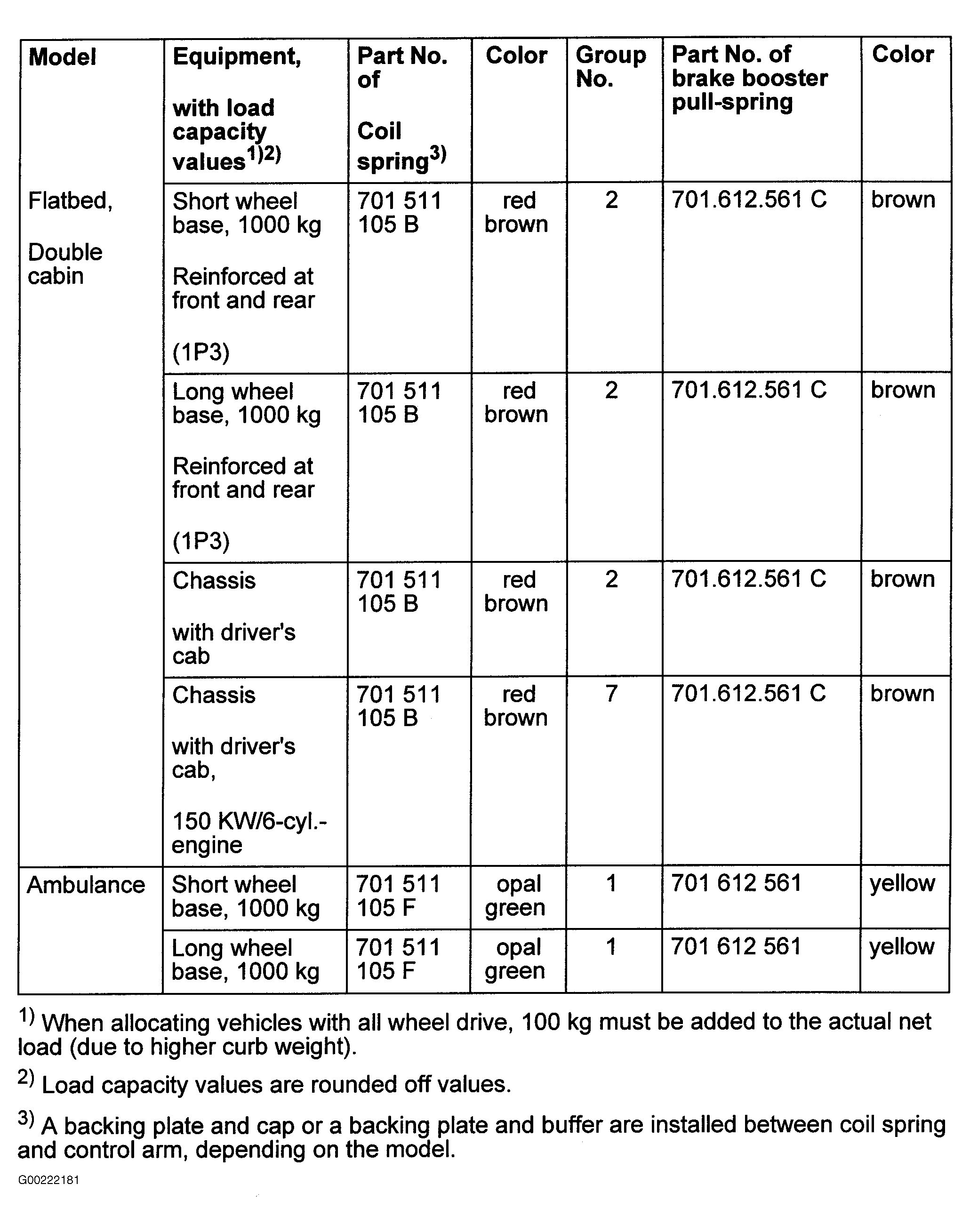

Fig 8: Coil Spring Applications (From 05/2000 - 4 Of 7)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 9: Coil Spring Applications (From 05/2000 - 5 Of 7)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 10: Coil Spring Applications (From 05/2000 - 6 Of 7)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 11: Coil Spring Applications (From 05/2000 - 7 Of 7)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 12: Coil Spring Applications (From 05/2000 With Diesel Engine - 1 Of 2)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 13: Coil Spring Applications (From 05/2000 With Diesel Engine - 2 Of 2)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 14: Coil Spring Applications (From 05/2000 With 2.8L VR6 Engine)

Courtesy of VOLKSWAGEN UNITED STATES, INC.
