Rear inertia reel, removing and installing
Rear seat backrest removed and rear seat folded forward.
Rear seat backrest upper part loosened.
NOTE:

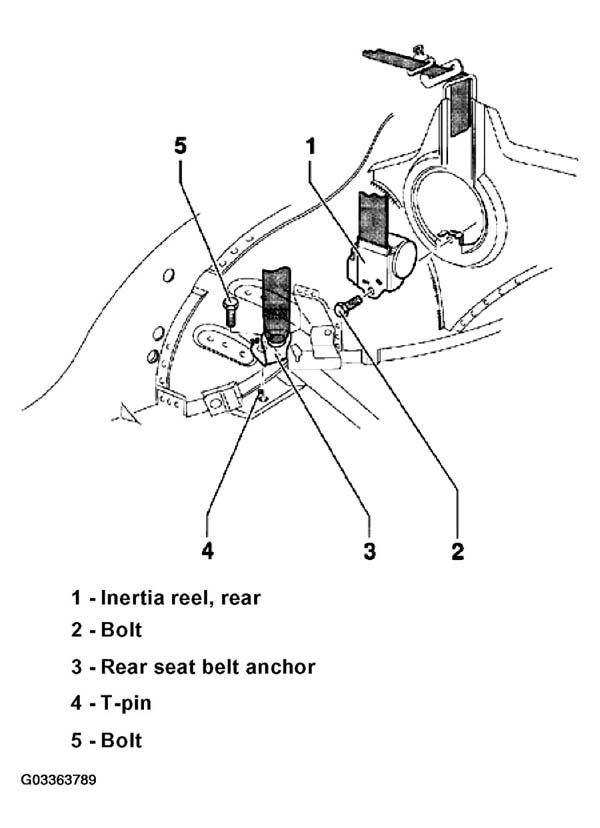

The following list refers to Fig 1
.
- - Inertia reel, rear
- Anchor and belt must be pulled through rear backrest upper part
- Retaining tabs determine position of belt reel
- - Bolt
- 40 N.m (30 ft lb)
- - Rear seat belt anchor
- T-pin -4- determines installation position
- - T-pin
- - Bolt
- 40 N.m (30 ft lb)
