Rear belt latch, removing and installing

Rear seat folded forward.

1. - Rear belt latch
2. - Bolts, 40 N.m (30 ft lb)
3. - Seal
4. - Cap

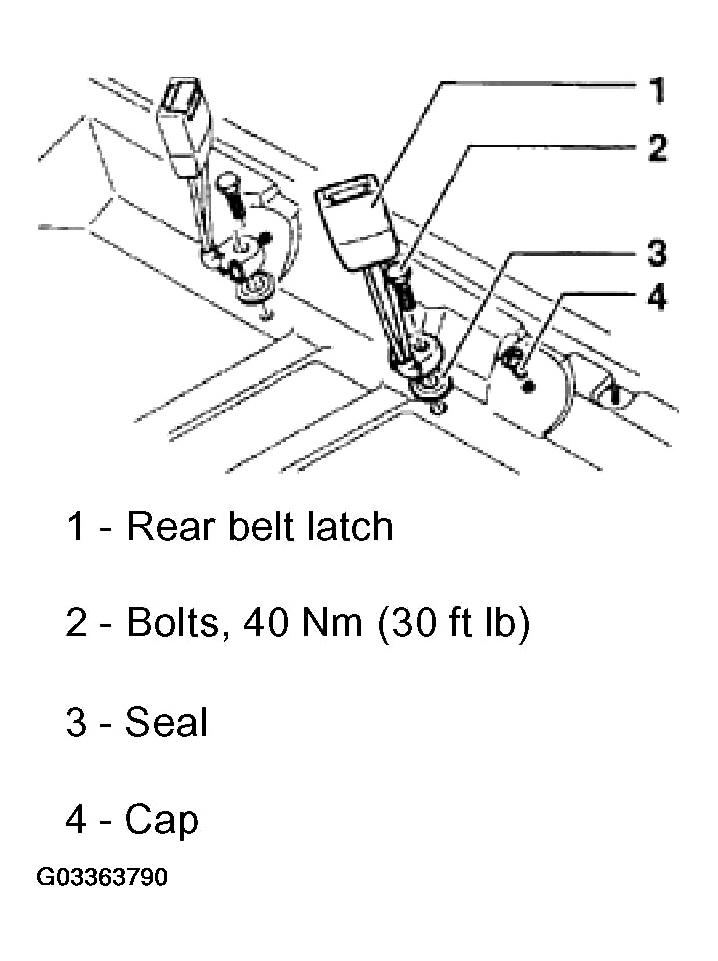

Fig 1: Identifying Rear Belt Latch Components
Courtesy of VOLKSWAGEN OF AMERICA, INC.
