Rear lower anchors

Illustration shows location of rear lower anchors for rear seat.

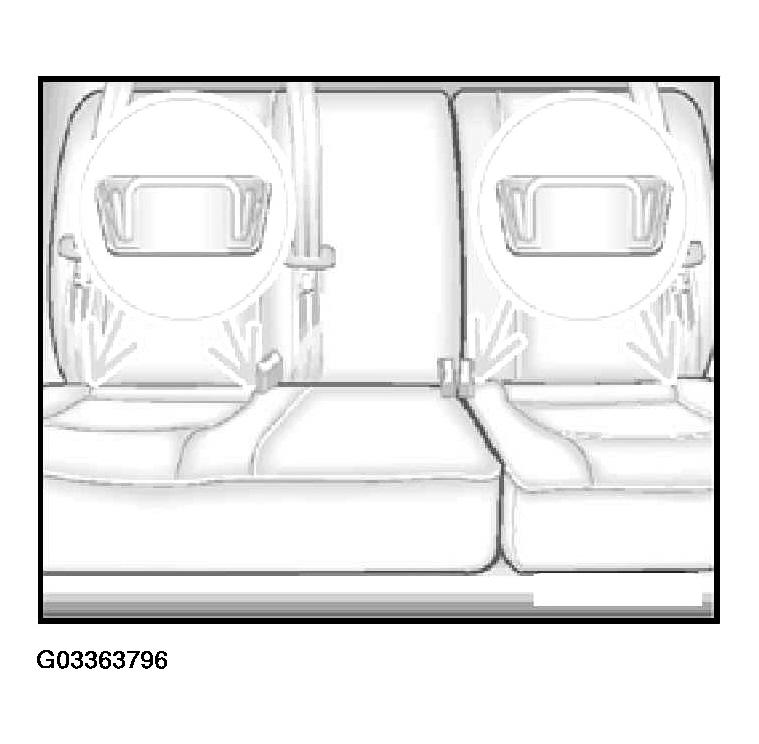

Fig 1: Location Of Rear Lower Anchors For Rear Seat
G03363796Courtesy of VOLKSWAGEN OF AMERICA, INC.
NOTE:
  • Rear lower anchors secure the child restraint in the seat without using the vehicle's safety belts. Anchors provide a secure and easy-to-use attachment and minimize the possibility of improper child restraint installation.
  • Rear lower anchor attachment points are located between the rear seat back and rear seat cushion for the outboard seating positions.
  • There is no rear middle seating position.
