LATCH, definition

The LATCH system for "Lower Anchors and Tethers for CHildren" consists of the combination of rear upper tethers and rear lower anchors used to secure a child restraint.

Vehicles with production date 09.00 (09/00) and later (see certification label on driver's side B-pillar -arrow-) are provided with the guidance fixtures and must be checked for installation during the Pre-Delivery Inspection (PDI).

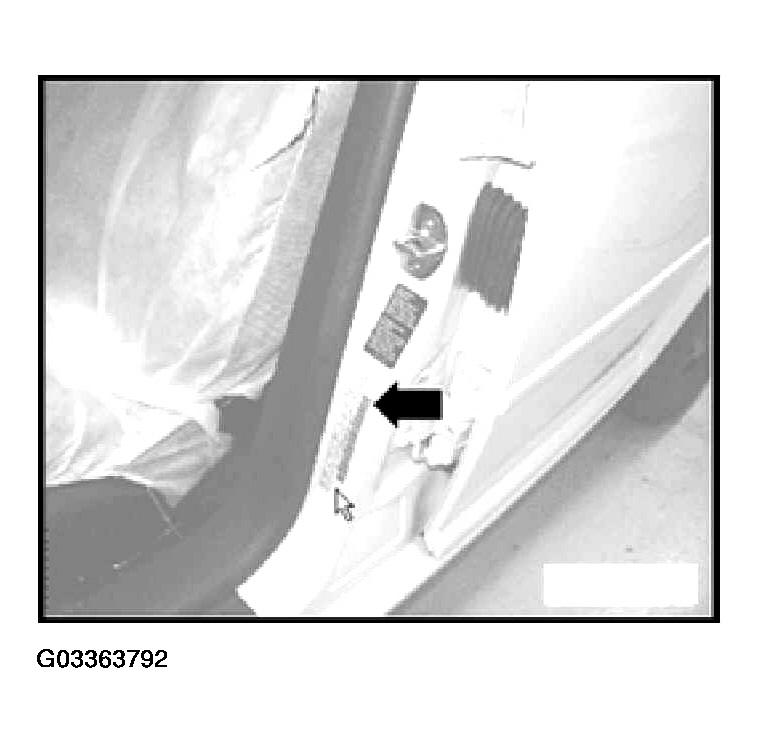

Fig 1: Locating Certification Label On Driver's Side B-Pillar

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Refer to LATCH system description and usage instructions.

Vehicles manufactured as of January 2001 are equipped with buttons (at arrows) to identify the rear lower anchor points.

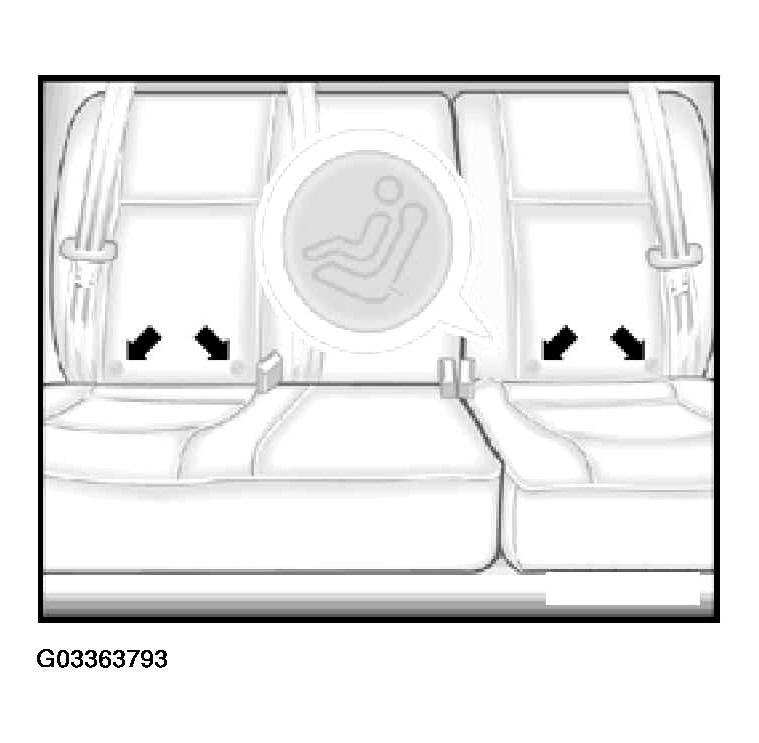

Fig 2: Identifying Buttons For Rear Lower Anchor Points

Courtesy of VOLKSWAGEN OF AMERICA, INC.
