Front belt reel and anchor rail with tensioner, removing and installing: Notes
WARNING:
Always follow prescribed work sequence for removing or installing belt reel -3-.
NOTE:

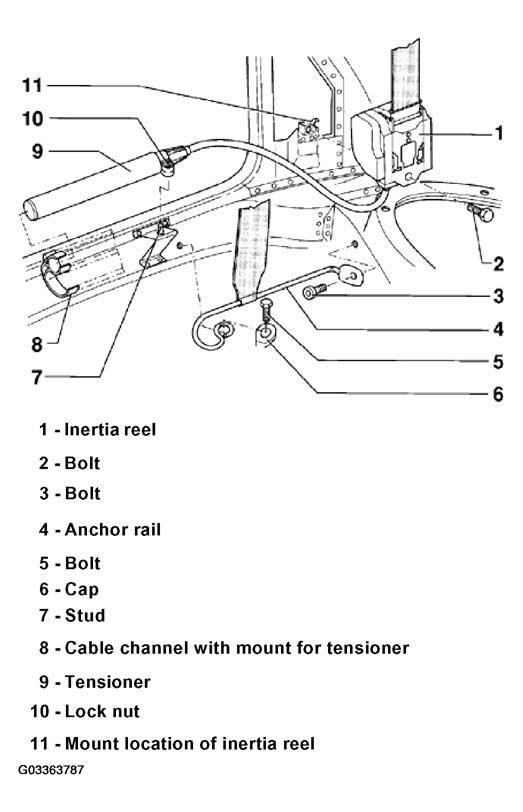

The following list refers to Fig 1
.
- - Inertia reel
- - Bolt
- 40 N.m (30 ft lb)
- - Bolt
- 23 N.m (17 ft lb)
- - Anchor rail
- - Bolt
- 40 N.m (30 ft lb)
- - Cap
- - Stud
- - Cable channel with mount for tensioner
- - Tensioner
- Integral part of seat belt
- Loosening lock nut - 7 - makes belt tensioner safe
- Tightening lock nut - 7 - makes it operational again
- - Lock nut
- 20 N.m (15 ft lb)
- - Mount location of inertia reel
- Retaining tabs determine position of belt reel
