Belt webbing
- Pull belt completely out of inertia reel or lap belt adjustment tongue.
- Inspect belt straps for dirt and, if necessary, wash with mild soap solution.
- If either of the following illustrated damage examples (1 and 2) are determined on accident vehicle - replace seat belt assembly.
- If damage as illustrated under points 1, 2 or 3 is found on vehicle which has not been involved in an accident, it is sufficient to replace damaged belt only.

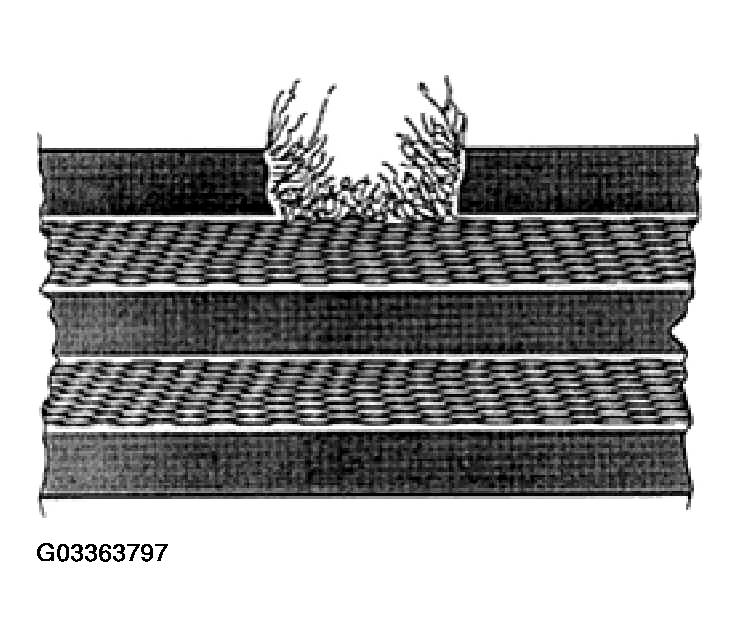

- - Cut, torn or chafed webbing strap
Courtesy of VOLKSWAGEN OF AMERICA, INC.

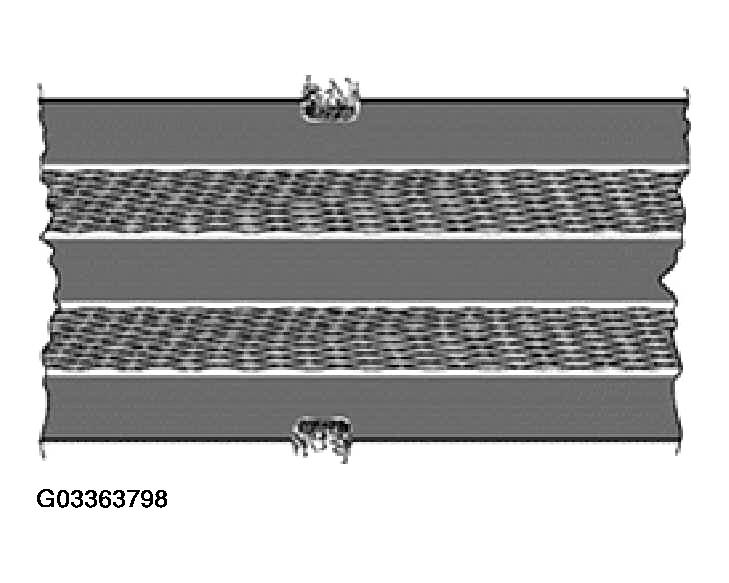

- - Tears on edges of belt webbing
Courtesy of VOLKSWAGEN OF AMERICA, INC.

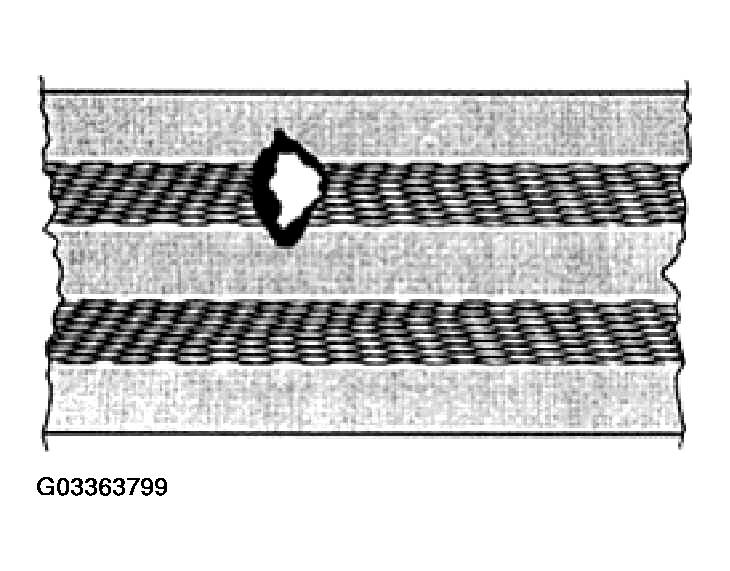

- - Burn spots from cigarettes or similar
Courtesy of VOLKSWAGEN OF AMERICA, INC.
