Sensor for driver's/front passenger's side airbag, removing and installing: Notes

NOTE: The following list refers to Fig 1 .

1. - Sensor, driver's/front passenger's
2. - Connector
3. - Bolt
   • 10 N.m (0.393 in. lb)
4. - Carpet
5. - Cover
   CAUTION: Disconnect battery Ground (GND) strap before working on electrical system.

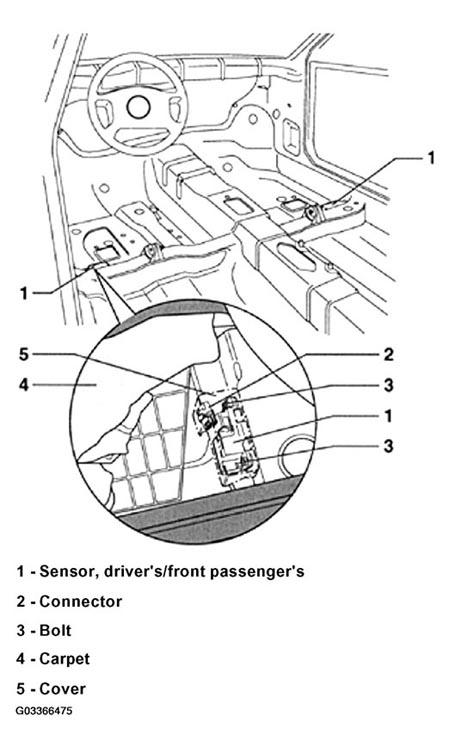

Fig 1: Identifying Sensor For Driver's/Front Passenger's Side Airbag

Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE:

• Removal and installation procedures may have to be modified slightly depending on vehicle equipment.
• Obtain radio code before disconnecting battery.
• After reconnecting battery, ensure vehicle equipment (radio, clock, electric windows) are checked per Owner's manual.

• Remove driver's or front passenger's seat page. See FRONT SEATS, REMOVING AND INSTALLING .
• Release carpet - 4 - and insulation in area of sensor. See Fig 1 .
• Pry off cover - 5 -.
• Disconnect connector - 2 - and remove screws - 3 -.
