Passenger's airbag unit, removing and installing: Notes
CAUTION:
Before working on electrical system:
- Switch off ignition.
- Disconnect battery Ground (GND) strap.
NOTE:
- Removal and installation procedures may have to be modified slightly depending on vehicle equipment.
- Obtain radio code before disconnecting battery.
- After reconnecting battery, ensure vehicle equipment (radio, clock, electric windows) are checked per Owner's manual.
- Remove shelf on front passenger's side

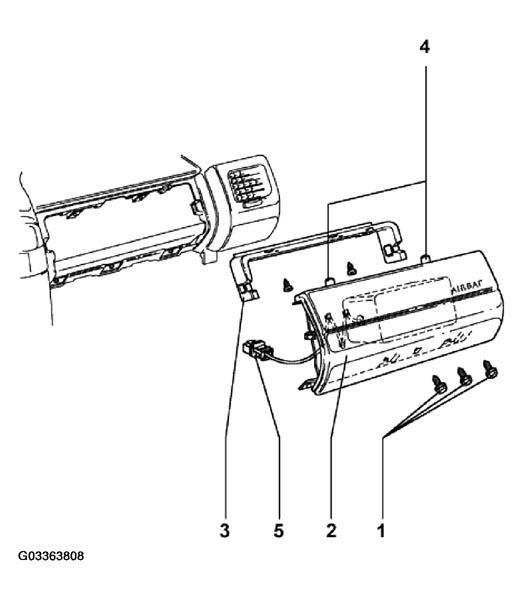

- Remove bolts -1-. Pull bottom part of airbag unit -2- from instrument panel and remove from frame -3- (check tabs -4- at top).
- Disconnect airbag unit connector -5-.
