Vehicles from 09.94 and up

Check prerequisites:

• All fuses according to wiring diagram OK.
• Battery voltage at least 9 V.

• Open ashtray, remove if necessary and slide cover for diagnostic connections to left -arrow-.
• With ignition switched off, connect scan tool V.A.G 1551 using diagnostic cable V.A.G 1551/3.

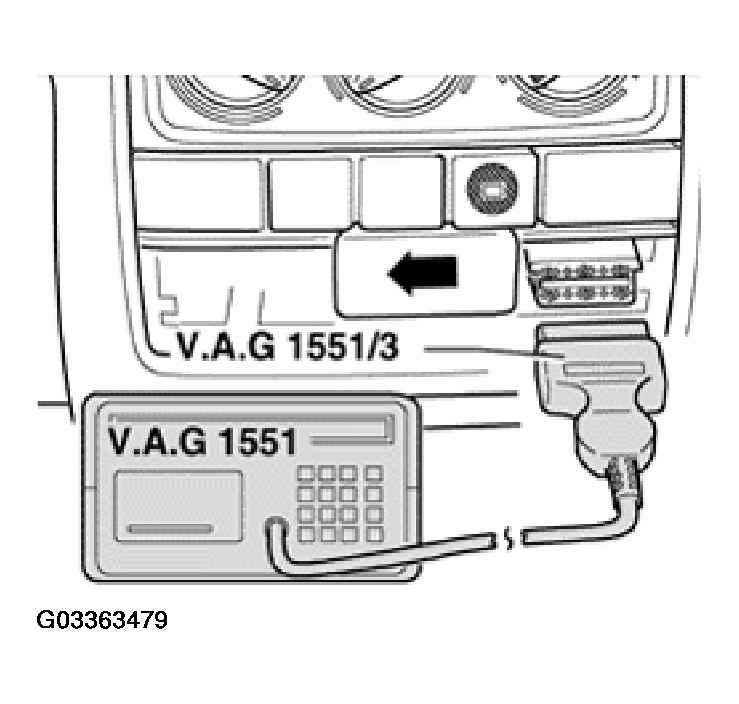

Fig 1: Opening & Sliding Cover Of Ashtray For Diagnostic Connections (From 09.94 & Up)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

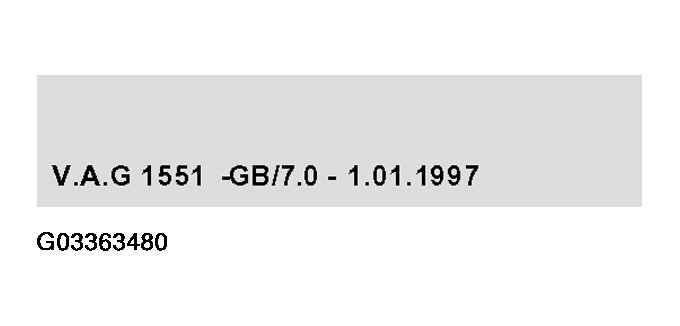

Fig 2: Indicated On Display (From 09.94 & Up) (1 Of 2)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

• Display will show the actual software version installed (will be shown briefly in display)

Indicated on display:

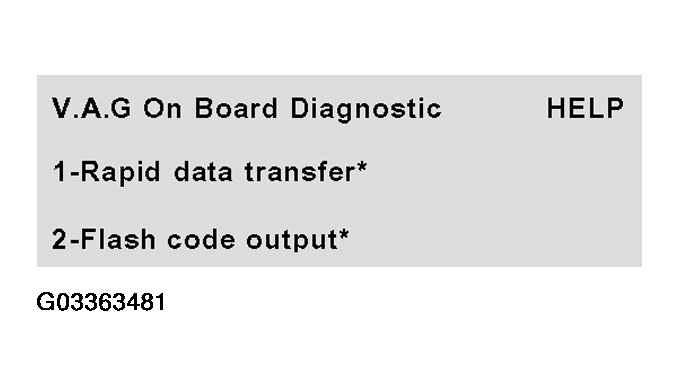

Fig 3: Indicated On Display (From 09.94 & Up) (2 Of 2)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

* Is displayed alternately.
