Test box to passenger's airbag components, connecting

  1. - Button
  2. - Connector, passenger airbag wiring harness/VAS 5056
  3. - Connector (not applicable)
  4. - Connector (not applicable)

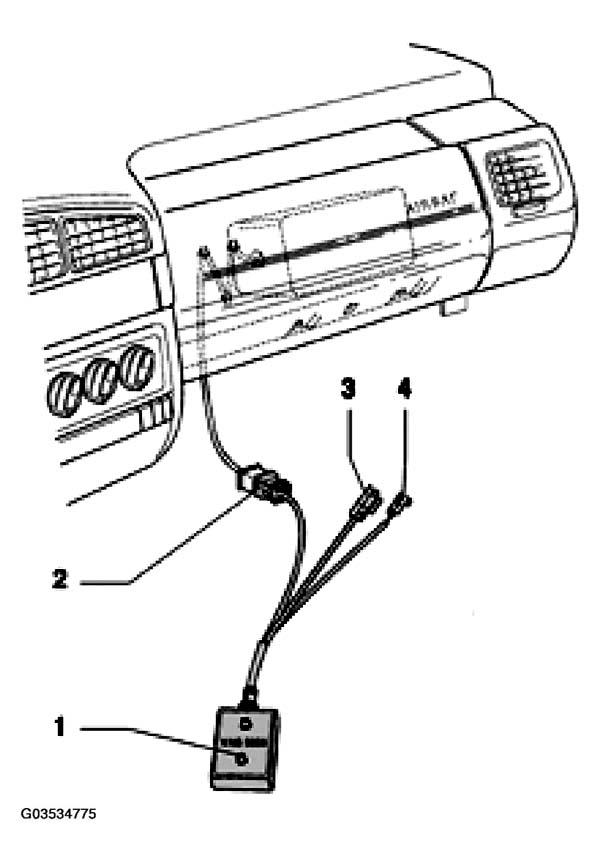

    5. Fig 1: Identifying Test Box To Passenger's Airbag Connecting Components
    G03534775Courtesy of VOLKSWAGEN OF AMERICA, INC.
