Connecting test box to driver's airbag components

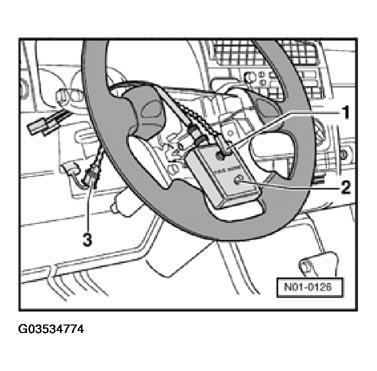

Driver's airbag and steering column switch, lower trim removed.
- Connect igniter connector to inert igniter -1- and disconnect wiring harness to Spiral spring with slip ring. Connect yellow 2-pin connector -3- from VAS 5056/1 with airbag wiring harness.
- - Igniter connector on inert igniter
- - Button
- - Spiral spring with slip ring connector
