Control module VW3 (Example)

Indicated on display.

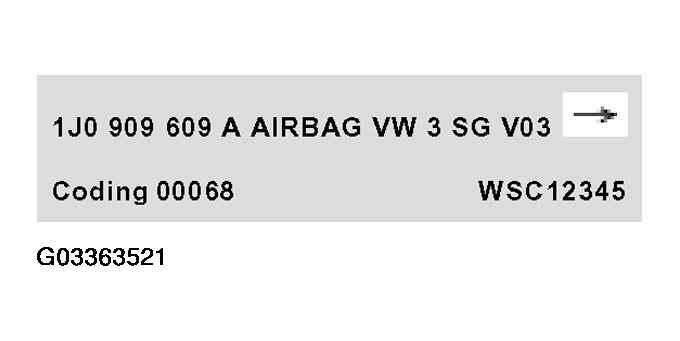

Fig 1: Control Module VW3 (Example), From 09.94 And Up: Indicated On Display (1 Of 2)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Top line

• 1J0 909 609 A = Control module Part No.
• Airbag VW3 = System designation
• S = Side airbag, G = Elect. belt tensioner
• V03 = software version number

Lower line

• Coding XXXXX = Coding variants
• WSC XXXXX = Dealership number (Will be automatically stored in the control module when entering the system)

• Press button.

Indicated on display:

Fig 2: Control Module VW3 (Example), From 09.94 And Up: Indicated On Display (2 Of 2)

Courtesy of VOLKSWAGEN OF AMERICA, INC.
