Airbag On Board Diagnostic (OBD), initiating

Indicated on display:

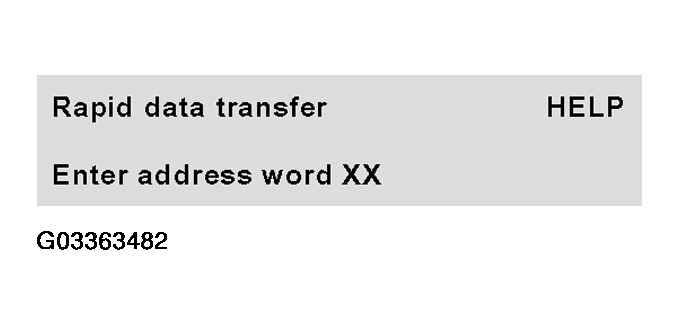

Fig 1: OBD Initiating, Up To 08.94: Indicated On Display (1 Of 10)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Press buttons -1- and -5- (address word of vehicle system to be tested "Airbag" is entered with 15).

Indicated on display:

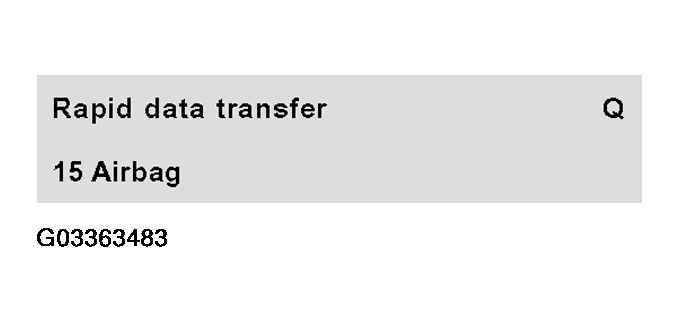

Fig 2: OBD Initiating, Up To 08.94: Indicated On Display (2 Of 10)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

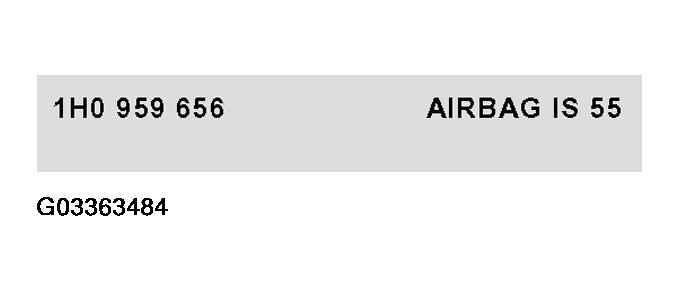

then display shows e.g.:

Control Module identification number is displayed:

Fig 3: OBD Initiating, Up To 08.94: Indicated On Display (3 Of 10)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE:

If a DTC opposite appears in display, possible causes can be printed out with HELP button.

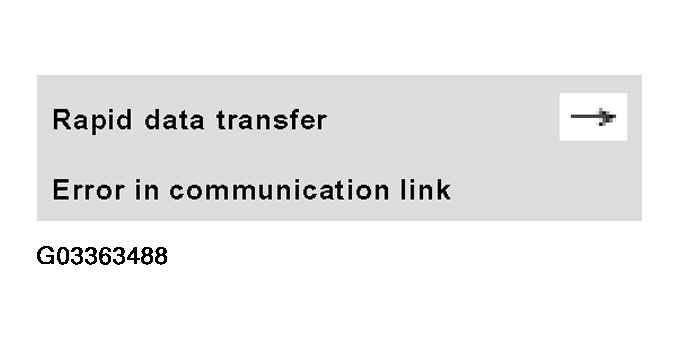

Fig 4: OBD Initiating, Up To 08.94: Indicated On Display (4 Of 10)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Ignition must be switched on

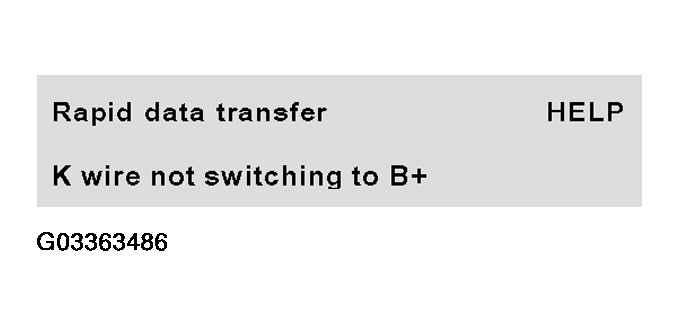

Fig 5: OBD Initiating, Up To 08.94: Indicated On Display (5 Of 10)
Courtesy of VOLKSWAGEN OF AMERICA, INC.
DTCs have occurred at the start of or during program (external sources of DTCs?).

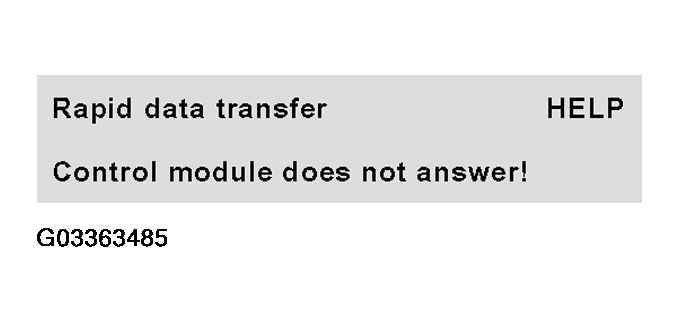

Fig 6: OBD Initiating, Up To 08.94: Indicated On Display (6 Of 10)
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Check Data Link Connector as well as voltage supply and ground connection.

After correcting DTC causes enter address word 15 for "Airbag" and confirm with -Q- button.

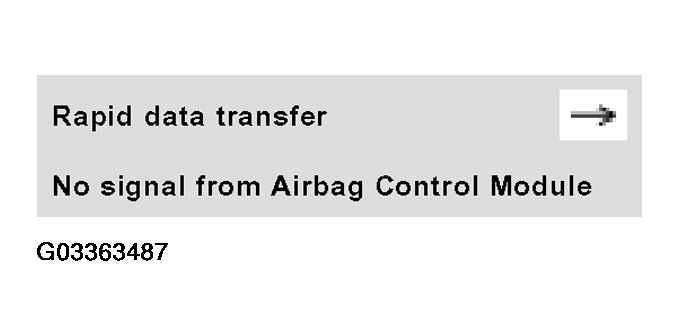

Fig 7: OBD Initiating, Up To 08.94: Indicated On Display (7 Of 10)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display after entering address word 15:

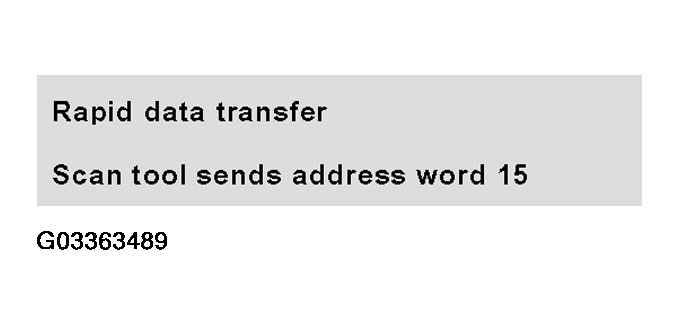

Fig 8: OBD Initiating, Up To 08.94: Indicated On Display (8 Of 10)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

The following appears in display:

Fig 9: OBD Initiating, Up To 08.94: Indicated On Display (9 Of 10)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

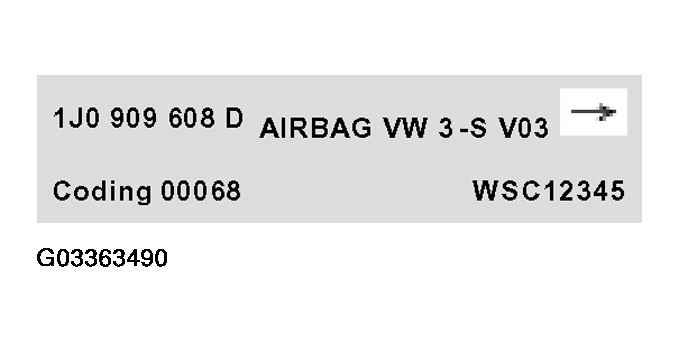

Control Module identification number is displayed:

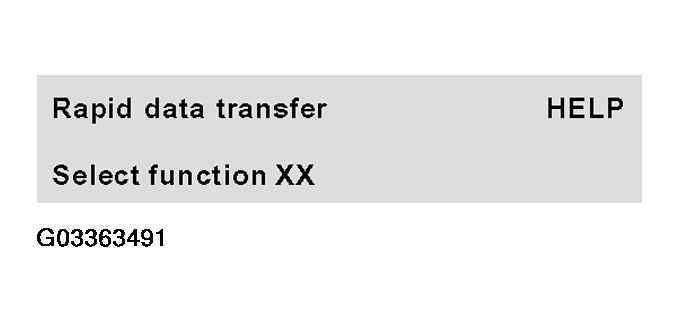

Indicated on display (function selection, e.g. 02 - Check DTC memory):

Fig 10: OBD Initiating, Up To 08.94: Indicated On Display (10 Of 10)

Courtesy of VOLKSWAGEN OF AMERICA, INC.
