Vacuum hose layout
NOTE:
Insert vacuum hose into reservoir 30 mm (1.2 in.). Insert vacuum hoses onto plastic lines up to stop, approx. 15 mm (5/8 in.).

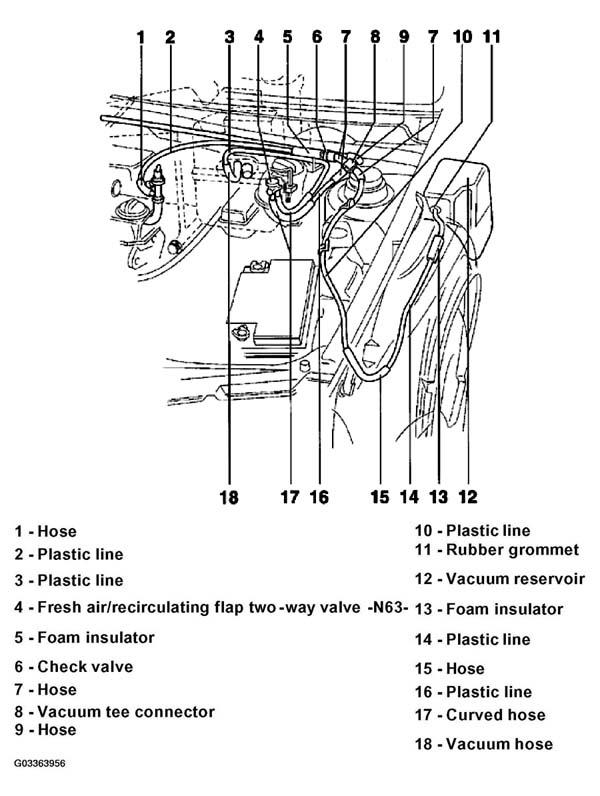

The following list pertains to Fig 1.
- Hose
- 3.5 x 2 x 40 mm
- Plastic line
- 4 x 1 x 540 mm
- Plastic line
- 4 x 1 x 490 mm
- Fresh air/recirculating flap two -way valve -N63-
- Foam insulator
- Check valve
- Arrow points to vacuum source
- Hose
- 3.5 x 2 x 40 mm
- Vacuum tee connector
- Hose
- 3.5 x 2 x 40 mm
- Plastic line
- 4 x 1 x 1170 mm
- Rubber grommet
- Vacuum reservoir
- Foam insulator
- Plastic line
- Hose
- 3.5 x 2 x 130 mm
- Plastic line
- 4 x 1 x 125 mm
- Curved hose
- Vacuum hose
- For fresh air/recirculating flap
