Removing and installing vacuum reservoir

- Vacuum hose
Insert into reservoir 30 mm (1.2 in.)
- Rubber grommet
- Vacuum reservoir
- Nut
- Wheel housing liner
- Remove wheel housing liner.
  1. For Golf, GTI or Jetta , see WHEELHOUSING LINER, REMOVING AND INSTALLING
  2. For Cabrio, see WHEEL HOUSING LINER, REMOVING AND INSTALLING
- Remove vacuum hose -1- and nut -4- from reservoir.
- Remove reservoir.
- Install in reverse order of removal.

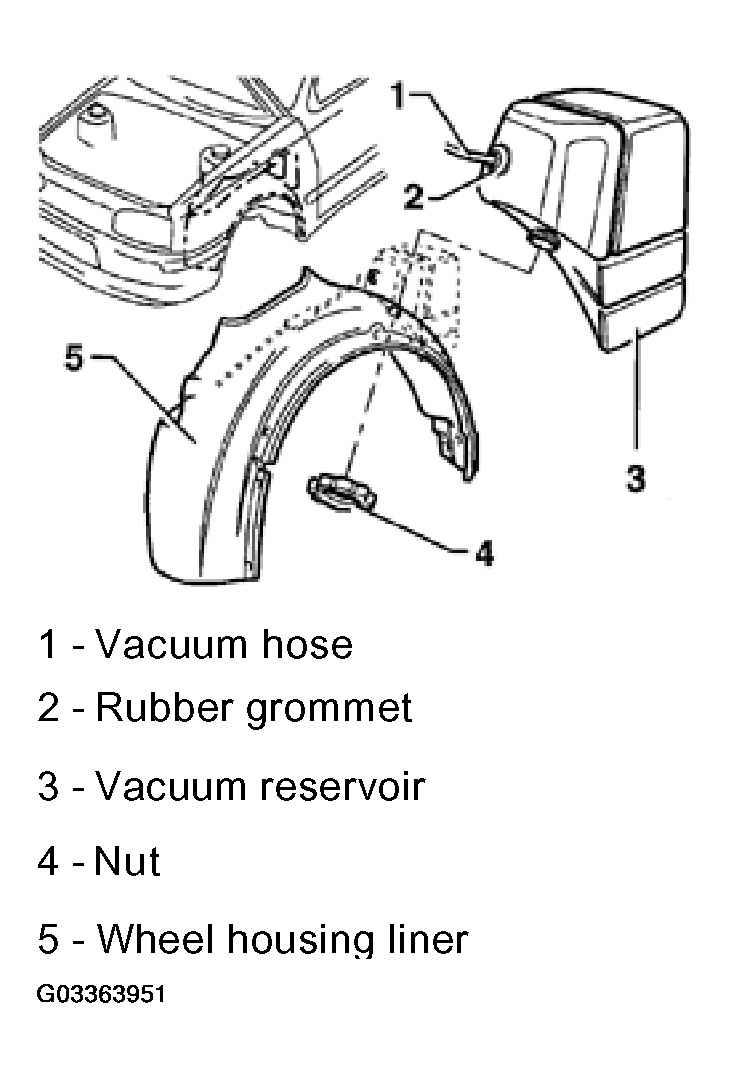

Fig 1: Removing Vacuum Reservoir

G03363951

Courtesy of VOLKSWAGEN OF AMERICA, INC.
