Removing and installing A/C cut-out thermal switch -F163- (2.0 liter engine code ABA)

CAUTION: Cooling system may be under pressure. Relieve system pressure before removing any engine coolant temperature sensors or switches.
  1. - Clip
  2. - Connection
  3. - O -ring
  4. - A/C cut out thermal switch -F163-
  5. - Harness connector

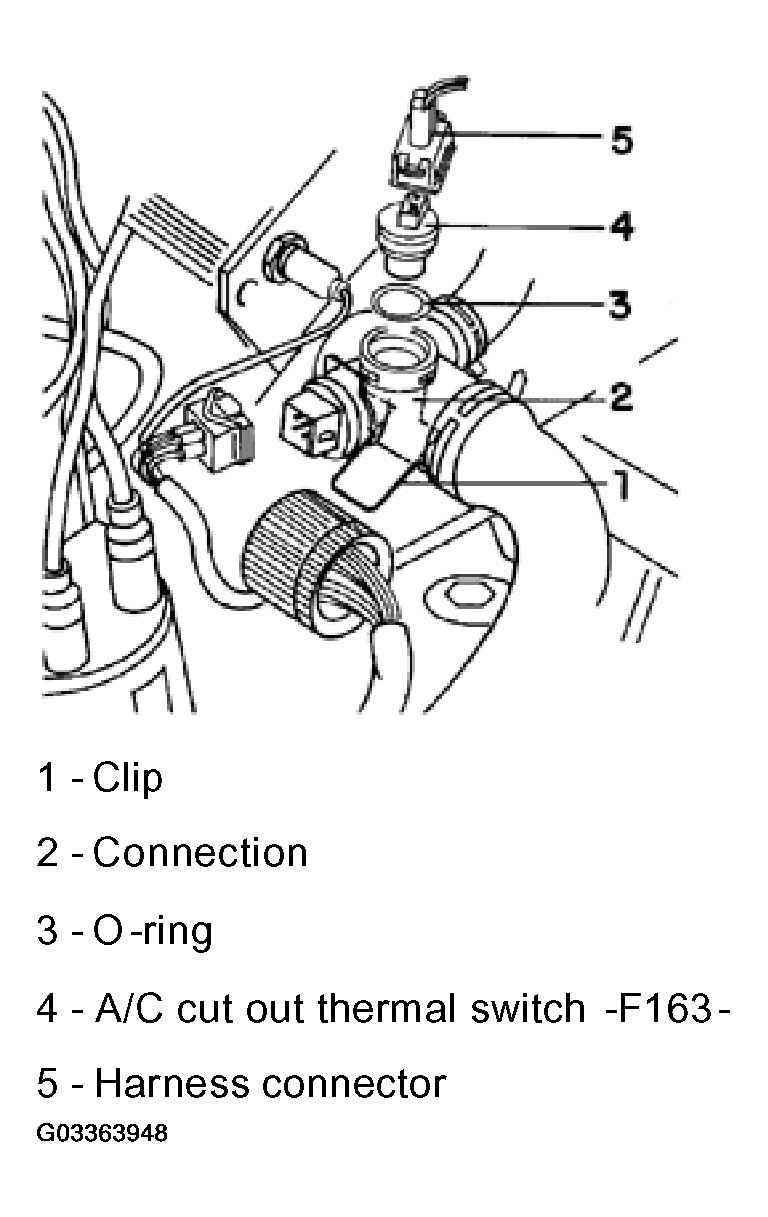

    Fig 1: Removing A/C Cut-Out Thermal Switch F163 (2.0 Liter Engine Code ABA)
    G03363948Courtesy of VOLKSWAGEN OF AMERICA, INC.
NOTE: Refill coolant to proper level after removing and installing A/C switches or sensors.
