Connector terminal identification of coolant Fan Control (FC) control module -J293- (up to 09.93)

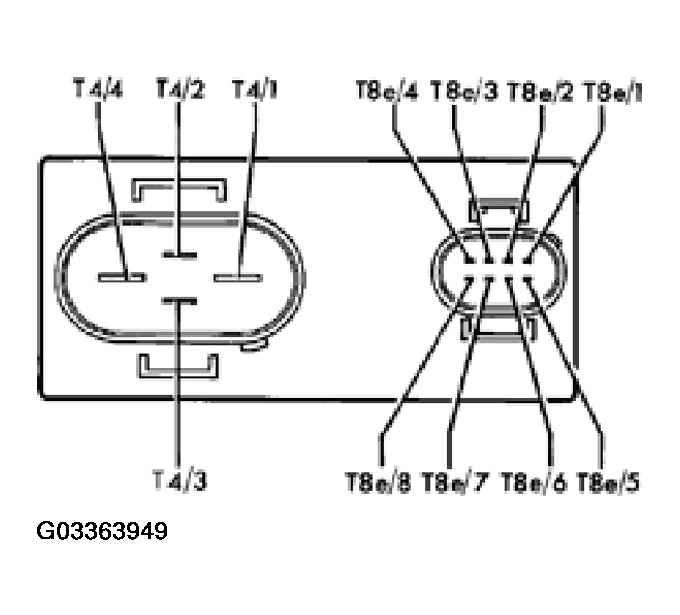

Fig 1: Identifying Terminals Of Coolant Fan Control (FC) Control Module J293 (Up To 09.93)
G03363949Courtesy of VOLKSWAGEN OF AMERICA, INC.
