Connector terminal identification of coolant Fan Control (FC) control module -J293- (10.93 and up)

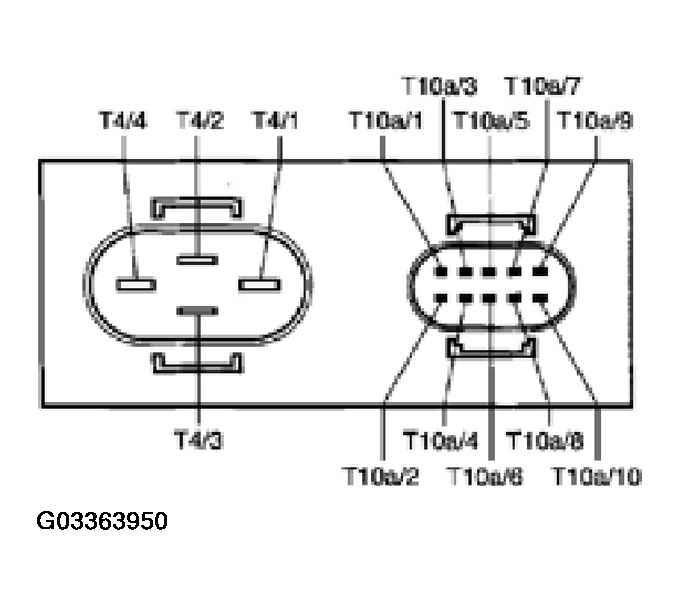

Fig 1: Identifying Terminals Of Coolant Fan Control (FC) Control Module J293 (10.93 And Up)
G03363950Courtesy of VOLKSWAGEN OF AMERICA, INC.
