Throttle Position (TP) sensor, removing, installing and adjusting: Removing

WARNING: This page is about a different car, the 1999 Volkswagen Jetta, 1998 Volkswagen Jetta, and 1997 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

Remove instrument panel and pedal cluster cover.
Remove accelerator pedal -6-.
Remove throttle position sensor -2- with bracket -3-, by removing both mounting nuts -8- with 1/4-in. drive tools.
Remove cable cam -4- and unscrew sensor from bracket.

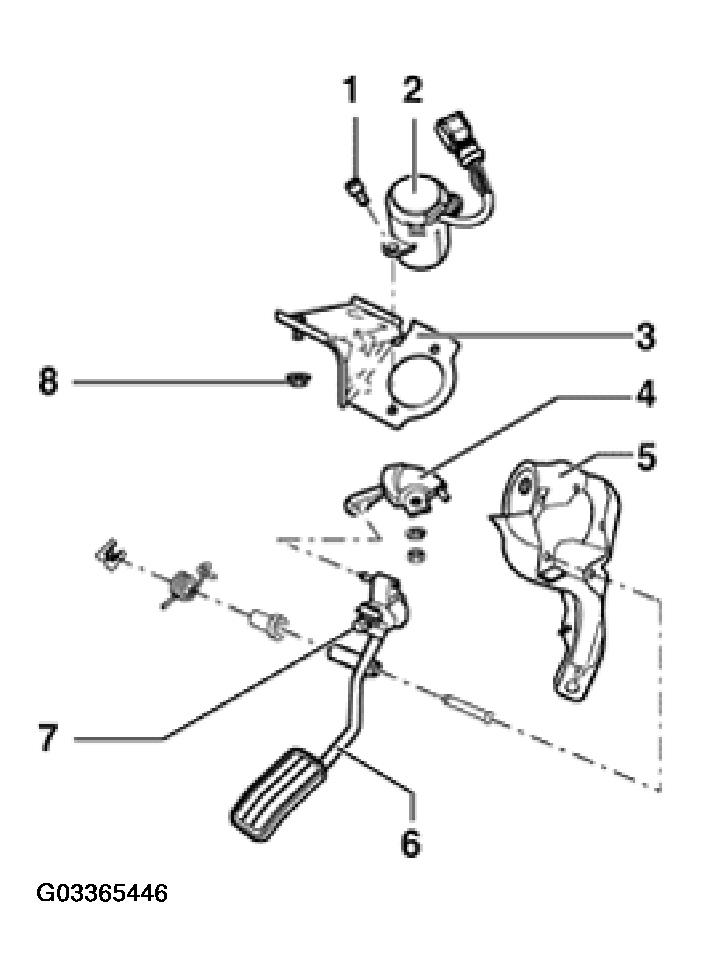

Fig 1: Removing Accelerator Pedal
