Throttle Position (TP) sensor, removing, installing and adjusting: Installing
WARNING: This page is about a different car, the 1999 Volkswagen Jetta, 1998 Volkswagen Jetta, and 1997 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
- Secure throttle position sensor to bracket.
- Attach cable cam to sensor.

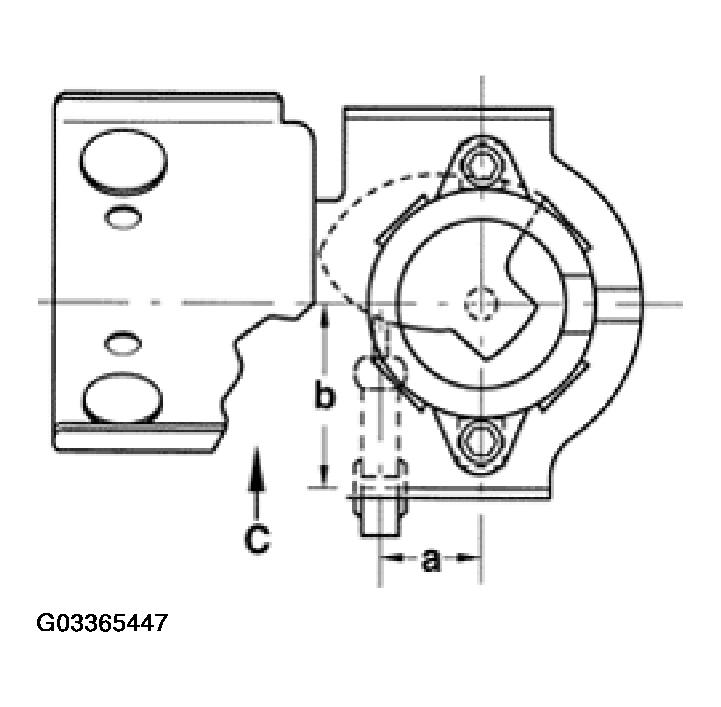

- Check attachment to make sure that dimensions -a- and -b- are as specified when facing forward (arrow -c-).
- = 22 0.05 mm (0.866 0.002 in.)
- = 41 0.05 mm (1.614 0.002 in.)
NOTE:
The cable cam eye must be parallel to the forward direction.
- Install sensor with bracket.
- Install accelerator pedal cable and mount cable cam eye to pin on accelerator pedal.
