Accelerator pedal control, servicing
WARNING: This page is about a different car, the 1999 Volkswagen Jetta, 1998 Volkswagen Jetta, and 1997 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

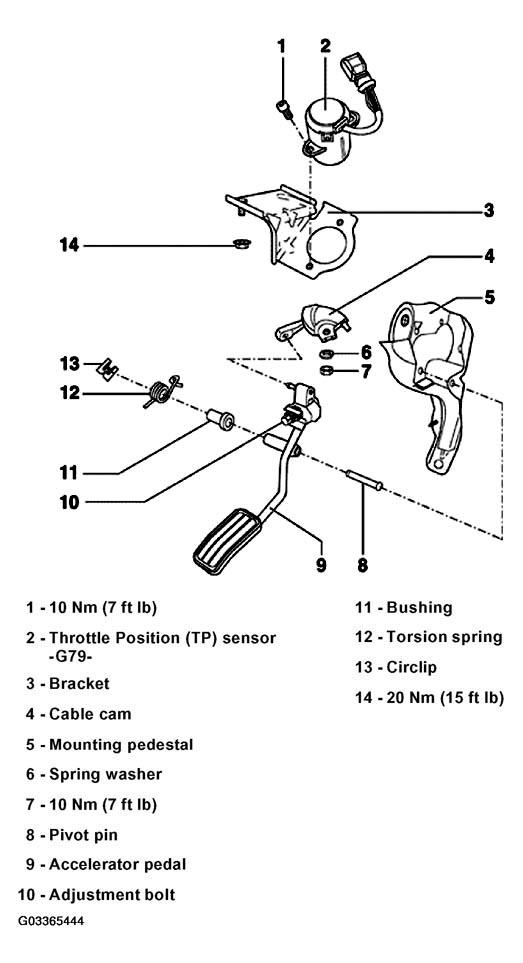

The following list pertains to Fig 1 .
- 10 Nm (7 ft lb)
- Throttle Position (TP) sensor -G79-
- Removing, installing, adjusting, see THROTTLE POSITION (TP) SENSOR, REMOVING, INSTALLING AND ADJUSTING
- Bracket
- Cable cam
- Mounting pedestal
- Spring washer
- 10 Nm (7 ft lb)
- Pivot pin
- Accelerator pedal
- Adjustment bolt
- Bushing
- Torsion spring
- Circlip
- 20 Nm (15 ft lb)
