Front exhaust pipe and oxidation catalytic converter, component layout (engine code AAZ)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 1999 Volkswagen Jetta, 1998 Volkswagen Jetta, 1997 Volkswagen Passat, 1997 Volkswagen Jetta, and 1996 Volkswagen Passat. However, it is still accessible from the selected car via links, so may be relevant.

The following list pertains to Fig 1 .

From turbocharger
Gasket
- Always replace
25 Nm (18 ft lb)
Front exhaust pipe
Sealing ring
- Replace if damaged
Oxidation Catalytic converter (OC)
To intermediate pipe
- MUFFLERS AND ATTACHMENTS, REMOVING AND INSTALLING (ENGINE CODE AAZ) , item 4
Retainer
- Between exhaust pipe and exhaust manifold

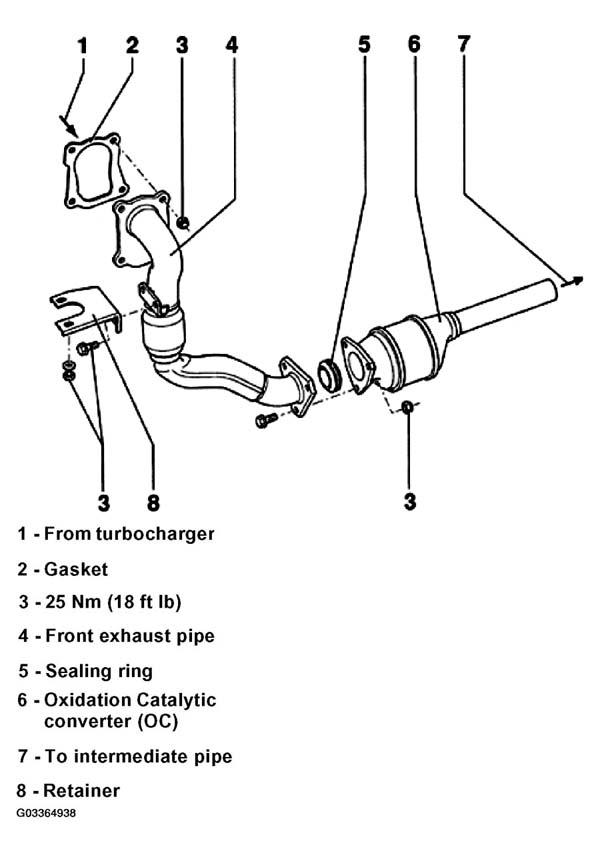

Fig 1: Identifying Front Exhaust Pipe And Oxidation Catalytic Converter, Components (Engine Code AAZ)
