Test sequence
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 1999 Volkswagen Jetta, 1998 Volkswagen Jetta, 1997 Volkswagen Passat, 1997 Volkswagen Jetta, and 1996 Volkswagen Passat. However, it is still accessible from the selected car via links, so may be relevant.

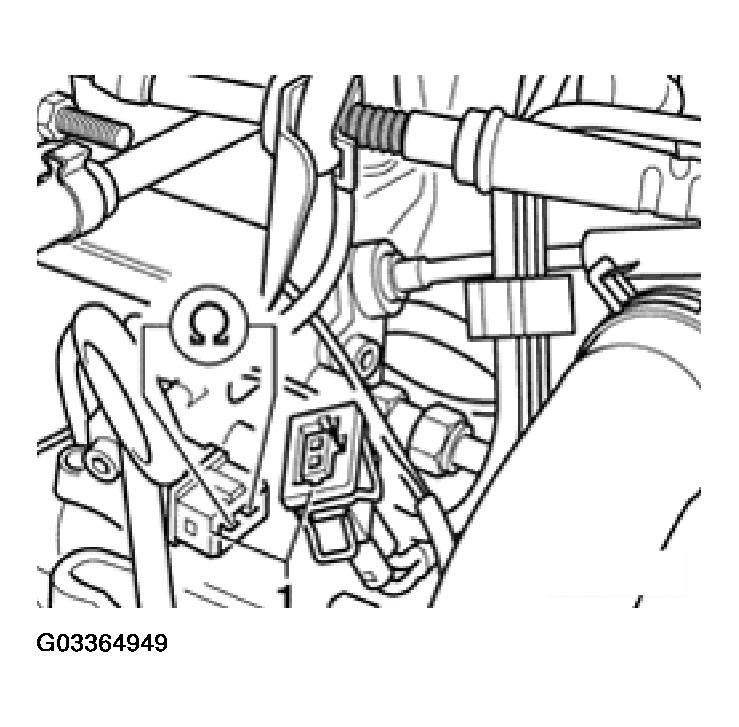

- Remove harness connector from sensor for engine temperature -G27-. See COOLING SYSTEM COMPONENTS, ENGINE SIDE .
- Measure resistance between engine temperature sensor terminals -1- and -3- using multimeter.

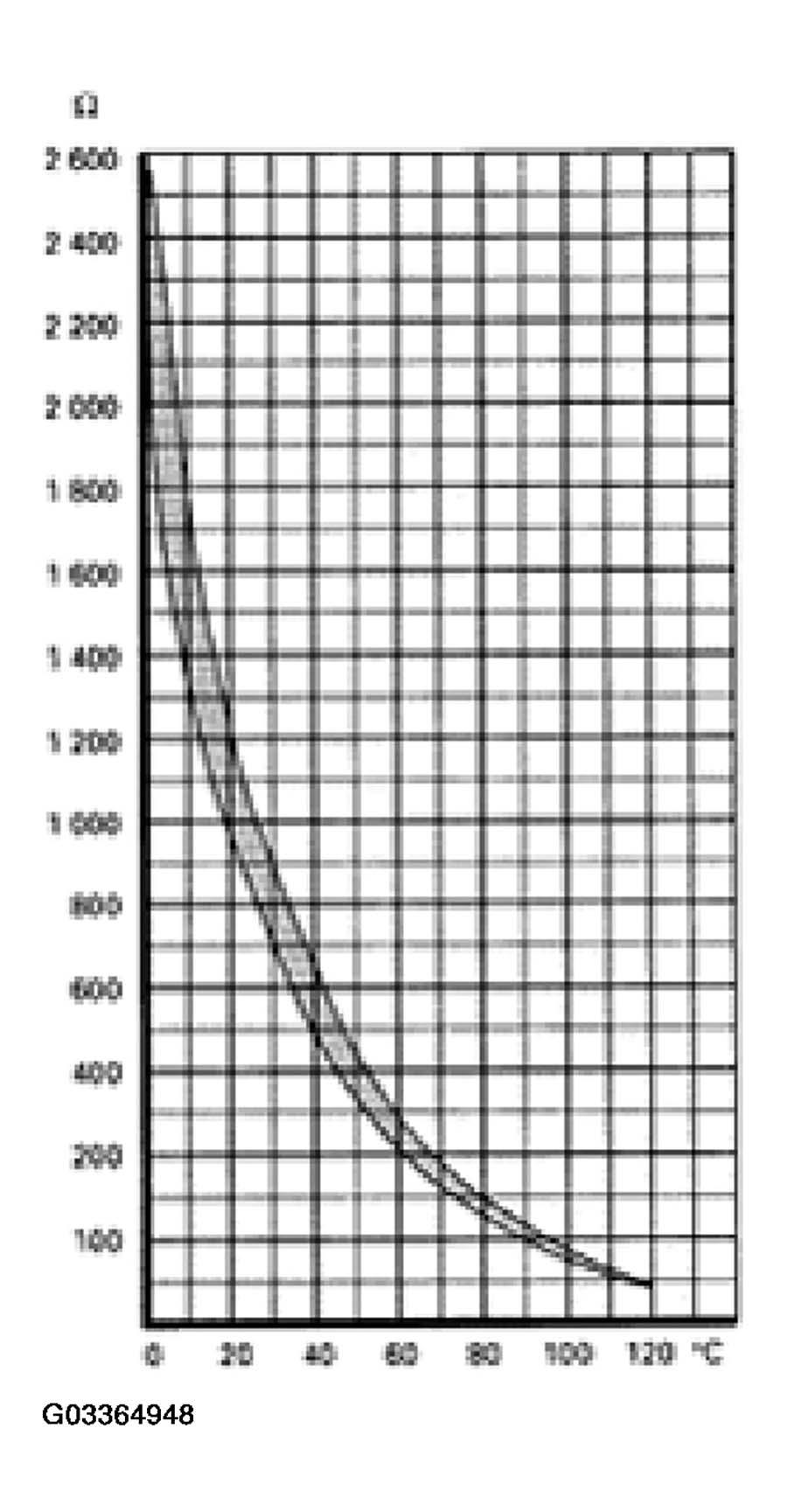

- Compare reading with specifications (see Figure
).
If specification not obtained:
- Release coolant system pressure and replace engine temperature sensor.
