Engine code AAZ
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 1999 Volkswagen Jetta, 1998 Volkswagen Jetta, 1997 Volkswagen Passat, 1997 Volkswagen Jetta, and 1996 Volkswagen Passat. However, it is still accessible from the selected car via links, so may be relevant.

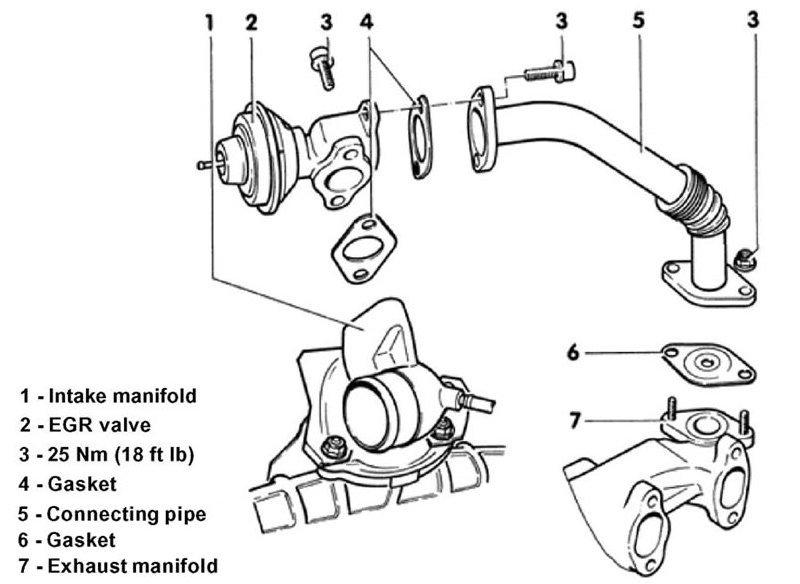

The following list pertains to Fig 1 .
- Intake manifold
- EGR valve
- Flow diagram, see EXHAUST GAS RECIRCULATION (EGR) SYSTEM, SERVICING (ENGINE CODE AAZ)
- Checking, see EGR VALVE, CHECKING
- 25 Nm (18 ft lb)
- Gasket
- Always replace
- Connecting pipe
- Gasket
- Always replace
- Restriction hole 9 mm diameter
- Exhaust manifold
