Engine code 1Z
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 1999 Volkswagen Jetta, 1998 Volkswagen Jetta, 1997 Volkswagen Passat, 1997 Volkswagen Jetta, and 1996 Volkswagen Passat. However, it is still accessible from the selected car via links, so may be relevant.

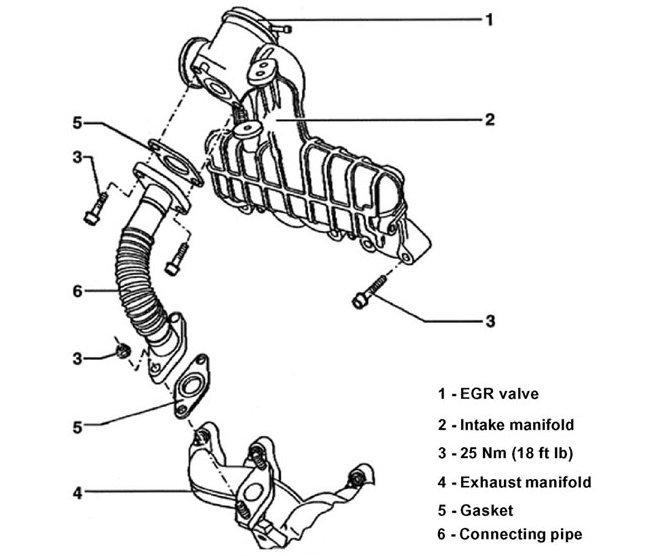

The following list pertains to Fig 1 .
- EGR valve
- Part of intake manifold assembly, cannot be individually replaced
- Checking, see EGR VALVE, CHECKING
- Intake manifold
- With integral EGR valve
- 25 Nm (18 ft lb)
- Exhaust manifold
- Gasket
- Always replace
- Connecting pipe
