Heater element for backrest, removing: Removing

There is a danger of the seat heating overheating.

• Remove seat, refer to FRONT SEATS, REMOVING AND INSTALLING .
• Remove backrest, refer to BACKREST, REMOVING AND INSTALLING .
• Remove backrest cover, refer to FRONT SEAT COVER AND PADDING, REMOVING AND INSTALLING  .
• Separate connector -5-.
• Guide cable -1- through opening -2- in padding center part -3- and take off heater element -4-.

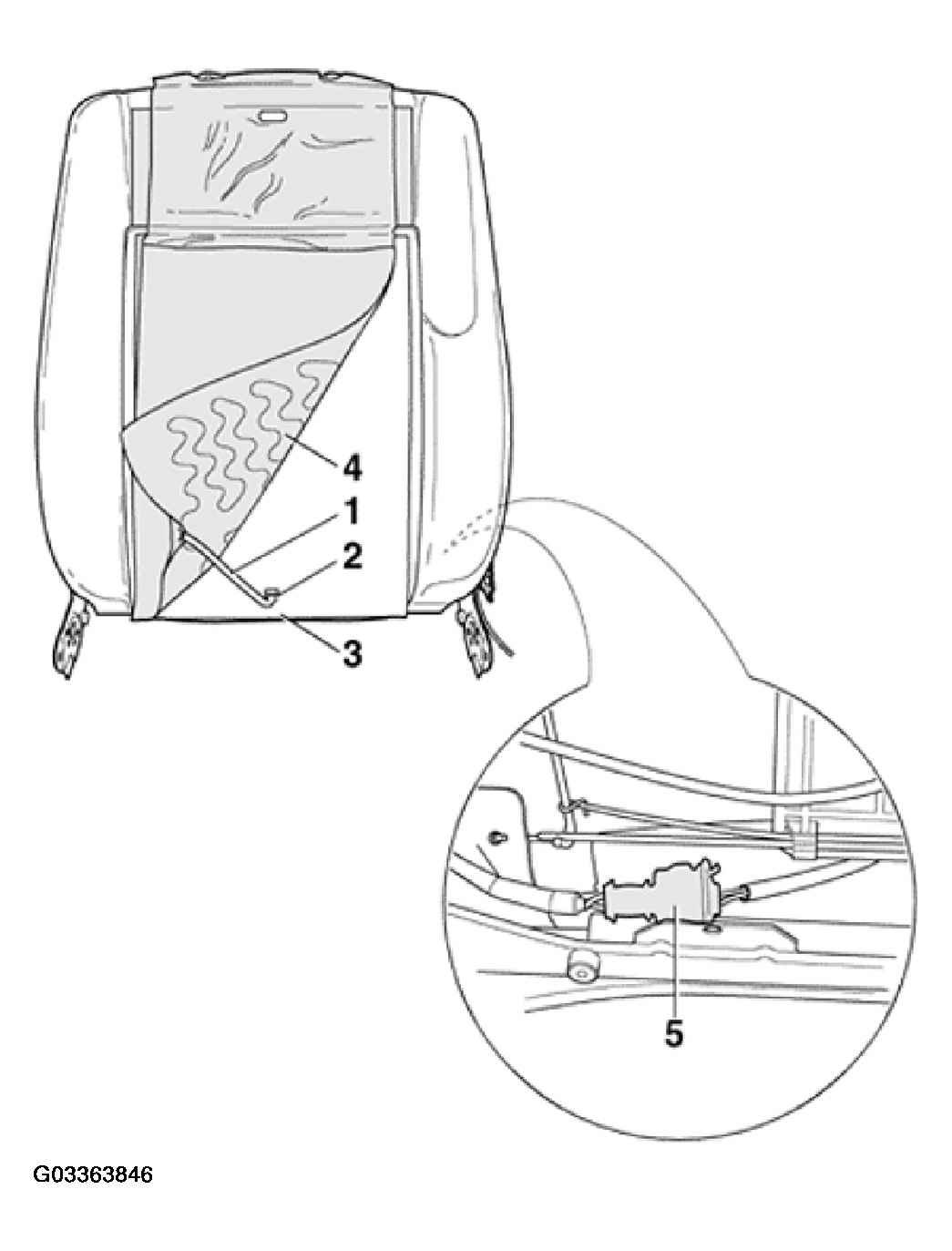

Fig 1: Removing Heater Element For Backrest
Courtesy of VOLKSWAGEN OF AMERICA, INC.
