Backrest cover and padding, removing and installing

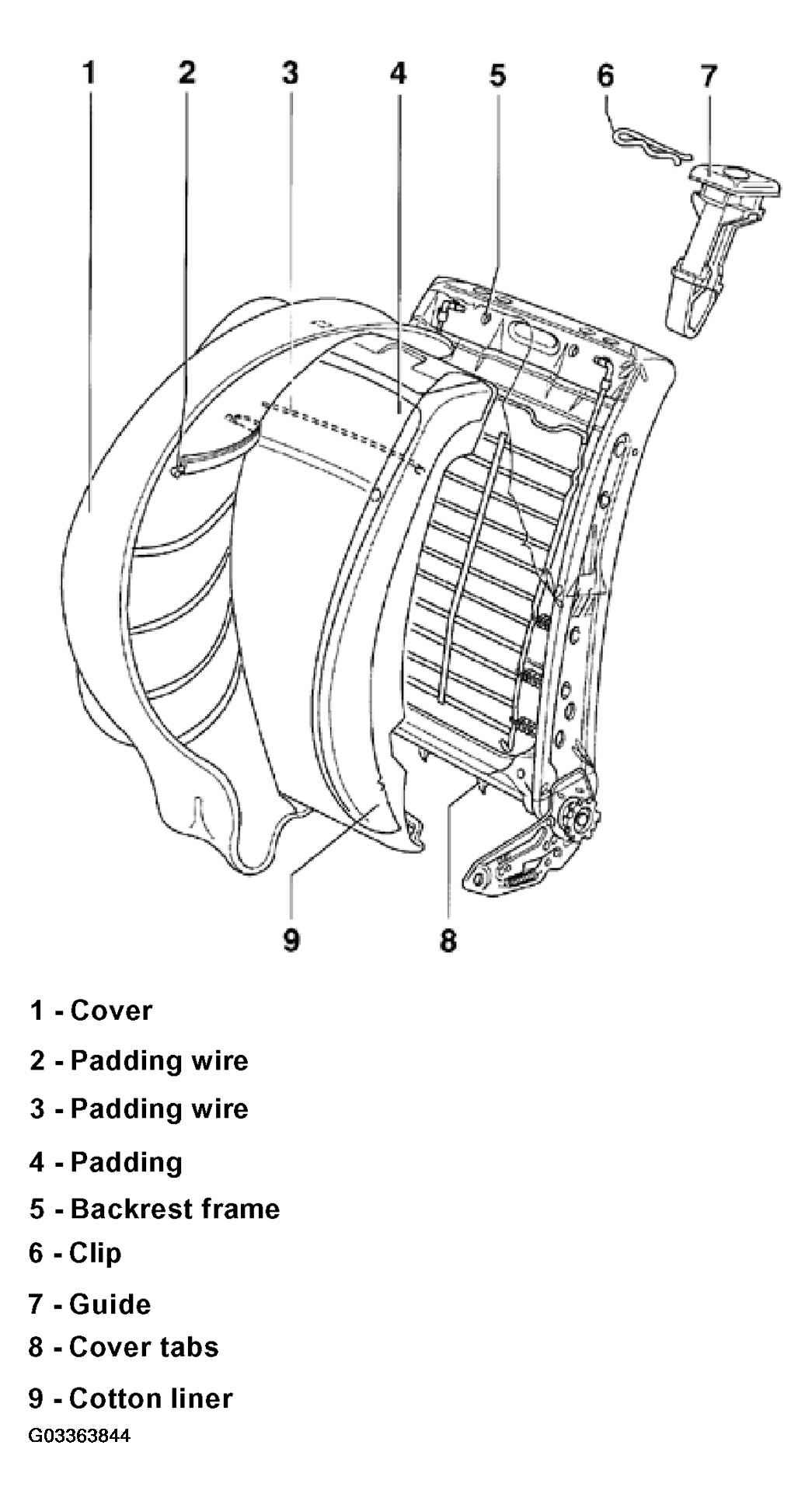

NOTE: The following list refers to Fig 1 .
  1. Cover
    • Open tabs, detach cover from tabs and pull off upward.
    • Remove guide for head restraint.
  2. Padding wire
    • Connected in padding; disconnect and connect with awl VAG 1636
  3. Padding wire
  4. Padding
  5. Backrest frame
  6. Clip
  7. Guide
    • Push up cover, squeeze ends of guide and pull out
  8. Cover tabs
  9. Cotton liner
    10. Fig 1: Identifying Backrest Cover And Padding Components
    G03363844Courtesy of VOLKSWAGEN OF AMERICA, INC.
