Dual-Tone Horn System Checking
Use tester VAG 1466 when troubleshooting dual-tone horn system!
Test conditions:
- Fuse No. 13 OK !
Troubleshooting preparations:

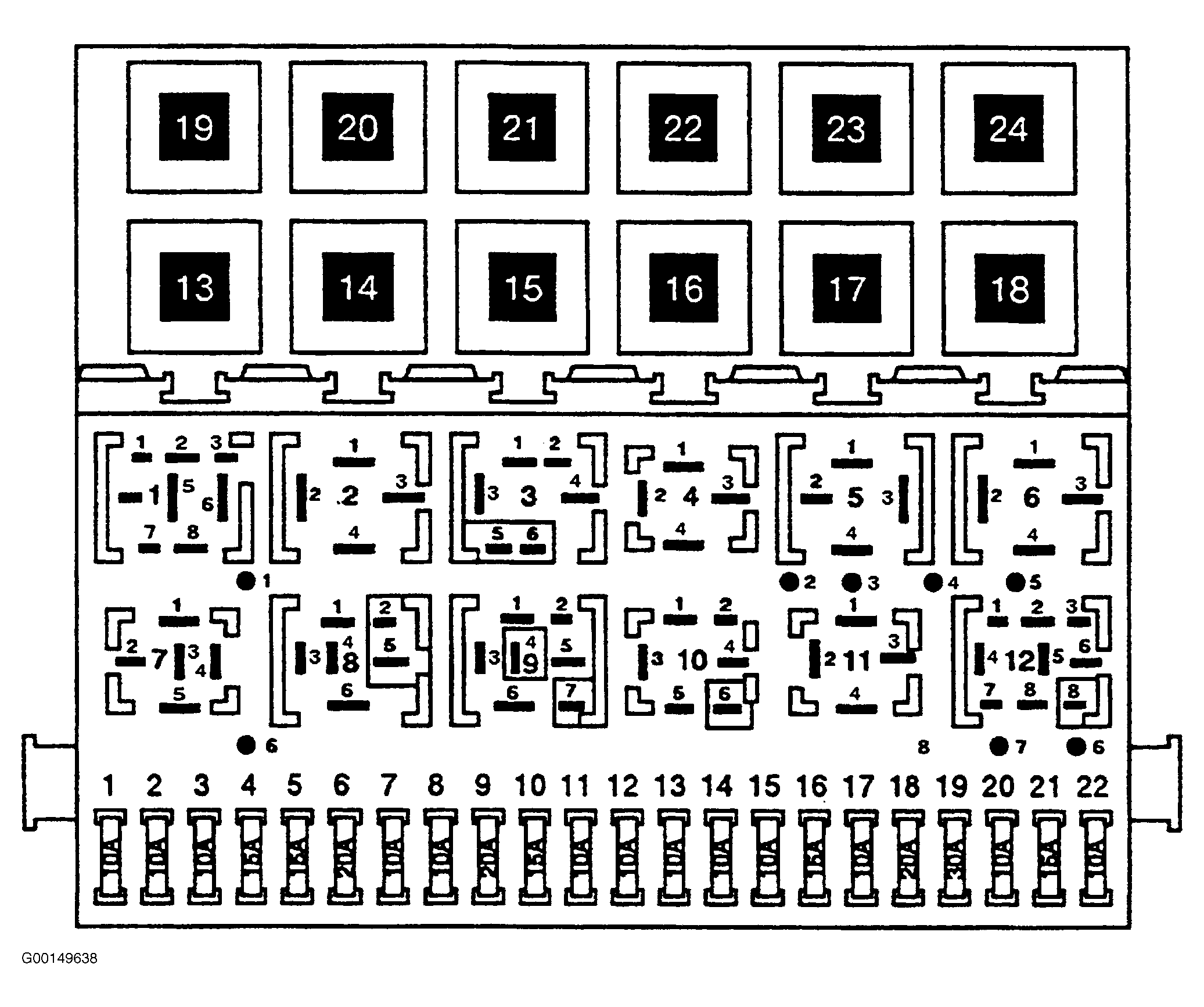

- Remove dual horn relay (J 4 ), stamped with production control number 53, from relay position 11.
- Insert test adaptor VAG 1466/3 into relay position 11.
- Connect VAG 1466/3 to test adaptor.
- Switch ignition ON
Test procedure information:
- Perform test steps according to Dual-Tone Horn System Troubleshooting table.
- If specified value/test result is obtained, continue troubleshooting with next test step (test result OK ).
- If specified value/test result is not obtained, locate and eliminate malfunction using table.
- Use valid wiring diagram for checking wiring.
- Remove all test wires from sockets of VAG 1466 after each test step.
IF MALFUNCTION HAS NOT BEEN ELIMINATED AFTER PERFORMING TEST STEPS 1 THROUGH 3, REPLACE DUAL HORN RELAY (J 4)!
After repairing malfunction, check dual-tone horn system for proper operation.
Dual-Tone Horn System Troubleshooting
| Test step: | 1 | 2 | 3 |
| To be checked: | Voltage supply | Horn button (H ) | Dual-tone horn (H 1 ) |
| Socket assignment VAG 1466: Red wire |
from 4 to S+ | from 4 to S+ | from 8 to 2 |
| Black wire | from S- to L+ | from S- to L+ | - |
| Blue wire | from L- to 2 | From L- to 6 | - |
| Additional work: | - | Press horn button (H ) | - |
| Specified value/ Test result: |
Indicator lamp L (green) lights up | Indicator lamp L (green) lights up | Dual-tone horn (H 1 ) sounds |
Possible Causes If Specified Value/Test Result Is Not Obtained
| Wiring from fuse/relay panel to component: | - | H 1/6
to H or H 2/1 to H |
A 1/7
to H1 or A 1/8 to H1 |
| or: Horn button (H ) |
- | X | - |
| or: Dual-tone horn (H 1 ) |
- | - | X |
| or: Fuse/relay panel |
X | X | X |
