Wheel Bearing: Installation

1. Clean hub cavity thoroughly. Using Bearing Race Installer (VW 432 and VW 411), press inner and outer bearing races into bore. Lubricate and install inner bearing. Using Seal Installer (VW 295 and 3074), tap grease seal into bore.
2. Install brake disc, outer bearing, thrust washer, and hub nut. Reverse removal procedure to complete installation. Adjust wheel bearing. See WHEEL BEARING under ADJUSTMENTS & INSPECTION. Install NEW cotter pin.

To install, reverse removal procedure. Clean hub cavity thoroughly. Lubricate and install inner bearing. Tighten all bolts and nuts to specification. See TORQUE SPECIFICATIONS.

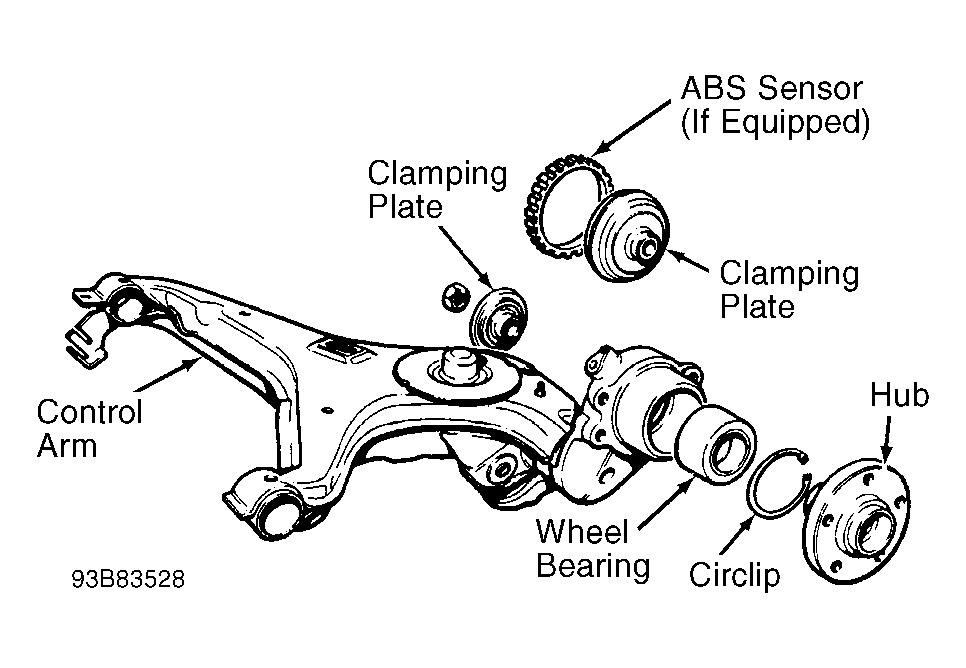

Fig 1: Identifying Hub & Wheel Bearing Components (EuroVan)

Courtesy of VOLKSWAGEN UNITED STATES, INC.
